Text from PDF Page: 005

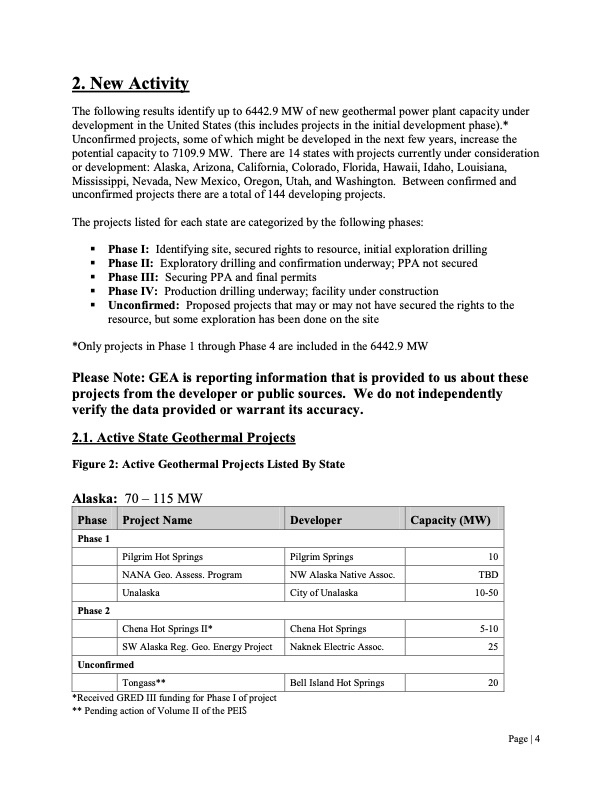

2. New Activity The following results identify up to 6442.9 MW of new geothermal power plant capacity under development in the United States (this includes projects in the initial development phase).* Unconfirmed projects, some of which might be developed in the next few years, increase the potential capacity to 7109.9 MW. There are 14 states with projects currently under consideration or development: Alaska, Arizona, California, Colorado, Florida, Hawaii, Idaho, Louisiana, Mississippi, Nevada, New Mexico, Oregon, Utah, and Washington. Between confirmed and unconfirmed projects there are a total of 144 developing projects. The projects listed for each state are categorized by the following phases: ! Phase I: Identifying site, secured rights to resource, initial exploration drilling ! Phase II: Exploratory drilling and confirmation underway; PPA not secured ! Phase III: Securing PPA and final permits ! Phase IV: Production drilling underway; facility under construction ! Unconfirmed: Proposed projects that may or may not have secured the rights to the resource, but some exploration has been done on the site *Only projects in Phase 1 through Phase 4 are included in the 6442.9 MW Please Note: GEA is reporting information that is provided to us about these projects from the developer or public sources. We do not independently verify the data provided or warrant its accuracy. 2.1. Active State Geothermal Projects Figure 2: Active Geothermal Projects Listed By State Alaska: 70 ñ 115 MW Phase 1 Pilgrim Hot Springs NANA Geo. Assess. Program Unalaska Chena Hot Springs II* SW Alaska Reg. Geo. Energy Project Unconfirmed Tongass** *Received GRED III funding for Phase I of project ** Pending action of Volume II of the PEIS Pilgrim Springs 10 NW Alaska Native Assoc. TBD City of Unalaska 10-50 Chena Hot Springs 5-10 Naknek Electric Assoc. 25 Bell Island Hot Springs 20 Phase Project Name Developer Capacity (MW) Phase 2 Page | 4PDF Image | U.S. Geothermal Power Production and Development Update 2009
PDF Search Title:
U.S. Geothermal Power Production and Development Update 2009Original File Name Searched:
US_Geothermal_Industry_Update_Sept_29_2009_Final.pdfDIY PDF Search: Google It | Yahoo | Bing
