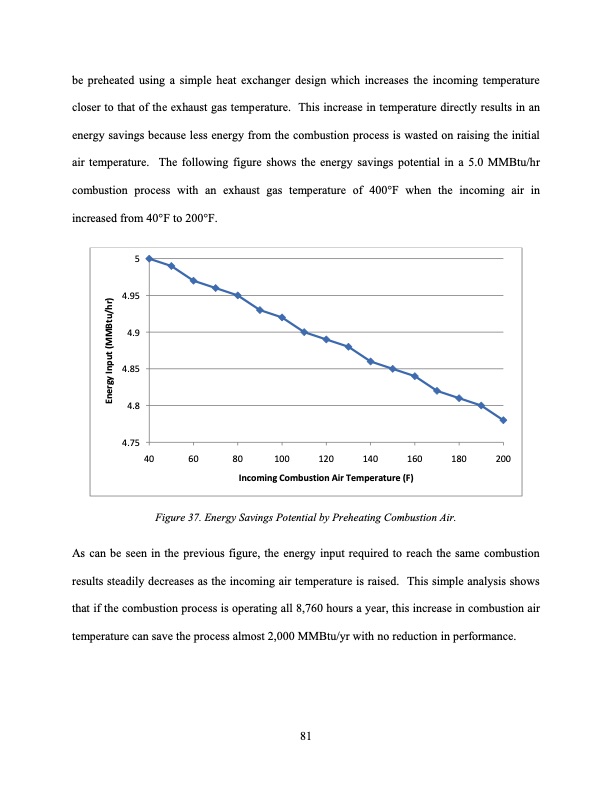

be preheated using a simple heat exchanger design which increases the incoming temperature closer to that of the exhaust gas temperature. This increase in temperature directly results in an energy savings because less energy from the combustion process is wasted on raising the initial air temperature. The following figure shows the energy savings potential in a 5.0 MMBtu/hr combustion process with an exhaust gas temperature of 400°F when the incoming air in increased from 40°F to 200°F. 5 4.95 4.9 4.85 4.8 4.75 40 60 80 100 120 140 160 180 200 Incoming Combustion Air Temperature (F) Figure 37. Energy Savings Potential by Preheating Combustion Air. As can be seen in the previous figure, the energy input required to reach the same combustion results steadily decreases as the incoming air temperature is raised. This simple analysis shows that if the combustion process is operating all 8,760 hours a year, this increase in combustion air temperature can save the process almost 2,000 MMBtu/yr with no reduction in performance. 81 Energy Input (MMBtu/hr)PDF Image | TUDY OF LOW-GRADE WASTE HEAT RECOVERY
