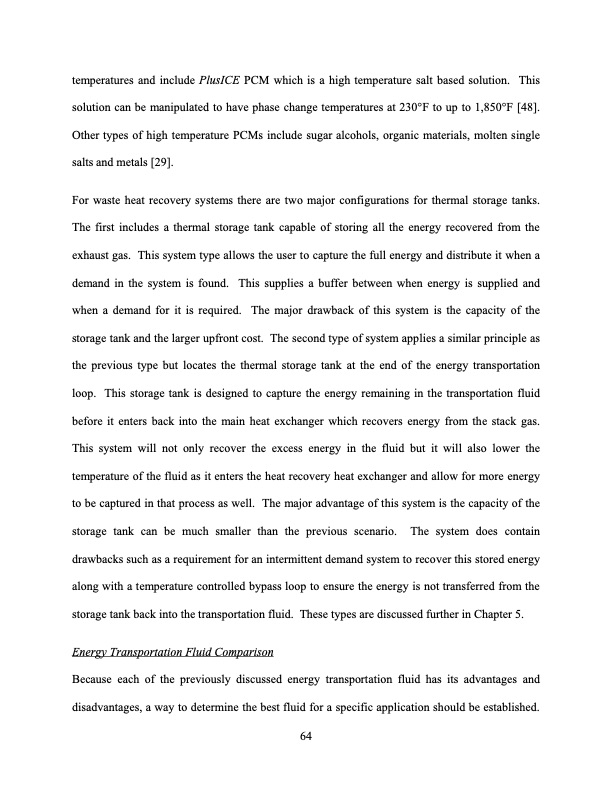

temperatures and include PlusICE PCM which is a high temperature salt based solution. This solution can be manipulated to have phase change temperatures at 230°F to up to 1,850°F [48]. Other types of high temperature PCMs include sugar alcohols, organic materials, molten single salts and metals [29]. For waste heat recovery systems there are two major configurations for thermal storage tanks. The first includes a thermal storage tank capable of storing all the energy recovered from the exhaust gas. This system type allows the user to capture the full energy and distribute it when a demand in the system is found. This supplies a buffer between when energy is supplied and when a demand for it is required. The major drawback of this system is the capacity of the storage tank and the larger upfront cost. The second type of system applies a similar principle as the previous type but locates the thermal storage tank at the end of the energy transportation loop. This storage tank is designed to capture the energy remaining in the transportation fluid before it enters back into the main heat exchanger which recovers energy from the stack gas. This system will not only recover the excess energy in the fluid but it will also lower the temperature of the fluid as it enters the heat recovery heat exchanger and allow for more energy to be captured in that process as well. The major advantage of this system is the capacity of the storage tank can be much smaller than the previous scenario. The system does contain drawbacks such as a requirement for an intermittent demand system to recover this stored energy along with a temperature controlled bypass loop to ensure the energy is not transferred from the storage tank back into the transportation fluid. These types are discussed further in Chapter 5. Energy Transportation Fluid Comparison Because each of the previously discussed energy transportation fluid has its advantages and disadvantages, a way to determine the best fluid for a specific application should be established. 64PDF Image | TUDY OF LOW-GRADE WASTE HEAT RECOVERY
