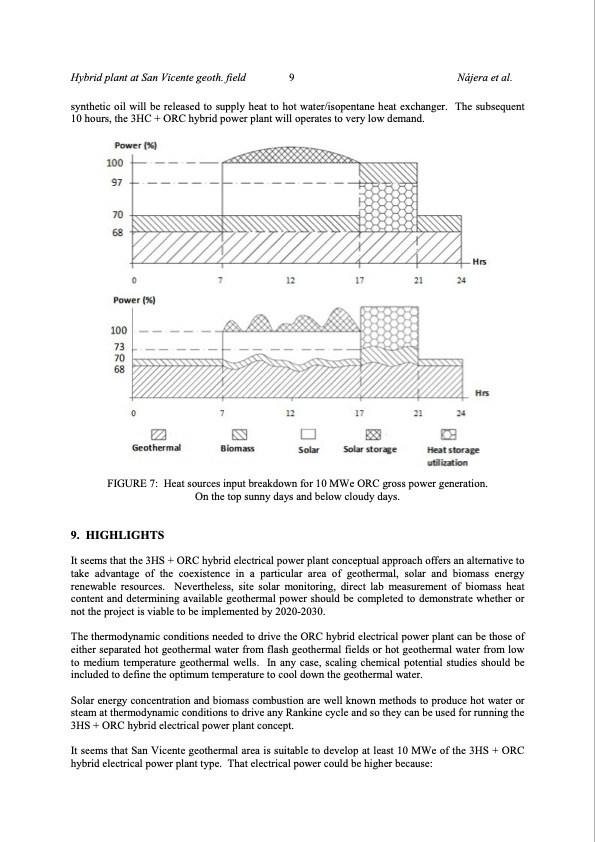

Hybrid plant at San Vicente geoth. field 9 Nájera et al. synthetic oil will be released to supply heat to hot water/isopentane heat exchanger. The subsequent 10 hours, the 3HC + ORC hybrid power plant will operates to very low demand. FIGURE 7: Heat sources input breakdown for 10 MWe ORC gross power generation. On the top sunny days and below cloudy days. 9. HIGHLIGHTS It seems that the 3HS + ORC hybrid electrical power plant conceptual approach offers an alternative to take advantage of the coexistence in a particular area of geothermal, solar and biomass energy renewable resources. Nevertheless, site solar monitoring, direct lab measurement of biomass heat content and determining available geothermal power should be completed to demonstrate whether or not the project is viable to be implemented by 2020-2030. The thermodynamic conditions needed to drive the ORC hybrid electrical power plant can be those of either separated hot geothermal water from flash geothermal fields or hot geothermal water from low to medium temperature geothermal wells. In any case, scaling chemical potential studies should be included to define the optimum temperature to cool down the geothermal water. Solar energy concentration and biomass combustion are well known methods to produce hot water or steam at thermodynamic conditions to drive any Rankine cycle and so they can be used for running the 3HS + ORC hybrid electrical power plant concept. It seems that San Vicente geothermal area is suitable to develop at least 10 MWe of the 3HS + ORC hybrid electrical power plant type. That electrical power could be higher because:PDF Image | HYBRID POWER PLANT USING THREE ENERGY RESOURCES
