PDF Publication Title:
Text from PDF Page: 246

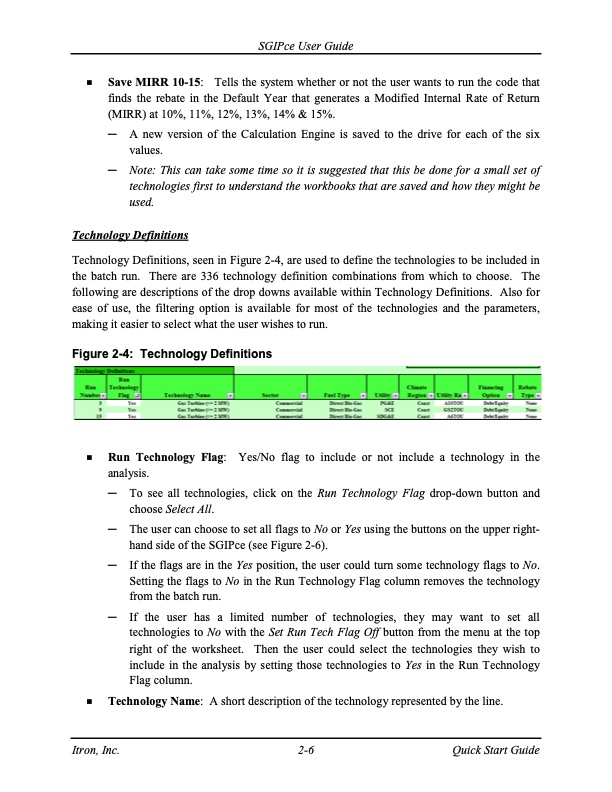

SGIPce User Guide Save MIRR 10-15: Tells the system whether or not the user wants to run the code that finds the rebate in the Default Year that generates a Modified Internal Rate of Return (MIRR) at 10%, 11%, 12%, 13%, 14% & 15%. ─ A new version of the Calculation Engine is saved to the drive for each of the six values. ─ Note: This can take some time so it is suggested that this be done for a small set of technologies first to understand the workbooks that are saved and how they might be used. Technology Definitions Technology Definitions, seen in Figure 2-4, are used to define the technologies to be included in the batch run. There are 336 technology definition combinations from which to choose. The following are descriptions of the drop downs available within Technology Definitions. Also for ease of use, the filtering option is available for most of the technologies and the parameters, making it easier to select what the user wishes to run. Figure 2-4: Technology Definitions Run Technology Flag: Yes/No flag to include or not include a technology in the analysis. ─ To see all technologies, click on the Run Technology Flag drop-down button and choose Select All. ─ The user can choose to set all flags to No or Yes using the buttons on the upper right- hand side of the SGIPce (see Figure 2-6). ─ If the flags are in the Yes position, the user could turn some technology flags to No. Setting the flags to No in the Run Technology Flag column removes the technology from the batch run. ─ If the user has a limited number of technologies, they may want to set all technologies to No with the Set Run Tech Flag Off button from the menu at the top right of the worksheet. Then the user could select the technologies they wish to include in the analysis by setting those technologies to Yes in the Run Technology Flag column. Technology Name: A short description of the technology represented by the line. Itron, Inc. 2-6 Quick Start GuidePDF Image | Cost-Effectiveness of Distributed Generation Technologies
PDF Search Title:
Cost-Effectiveness of Distributed Generation TechnologiesOriginal File Name Searched:
SGIP_CE_Report_Final.pdfDIY PDF Search: Google It | Yahoo | Bing
