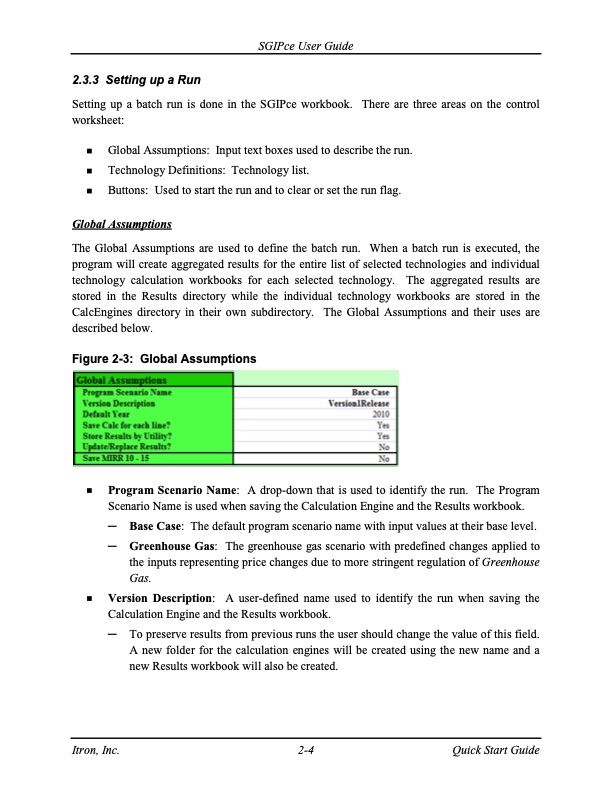

SGIPce User Guide 2.3.3 Setting up a Run Setting up a batch run is done in the SGIPce workbook. There are three areas on the control worksheet: Global Assumptions: Input text boxes used to describe the run. Technology Definitions: Technology list. Buttons: Used to start the run and to clear or set the run flag. Global Assumptions The Global Assumptions are used to define the batch run. When a batch run is executed, the program will create aggregated results for the entire list of selected technologies and individual technology calculation workbooks for each selected technology. The aggregated results are stored in the Results directory while the individual technology workbooks are stored in the CalcEngines directory in their own subdirectory. The Global Assumptions and their uses are described below. Figure 2-3: Global Assumptions Program Scenario Name: A drop-down that is used to identify the run. The Program Scenario Name is used when saving the Calculation Engine and the Results workbook. ─ Base Case: The default program scenario name with input values at their base level. ─ Greenhouse Gas: The greenhouse gas scenario with predefined changes applied to the inputs representing price changes due to more stringent regulation of Greenhouse Gas. Version Description: A user-defined name used to identify the run when saving the Calculation Engine and the Results workbook. ─ To preserve results from previous runs the user should change the value of this field. A new folder for the calculation engines will be created using the new name and a new Results workbook will also be created. Itron, Inc. 2-4 Quick Start GuidePDF Image | Cost-Effectiveness of Distributed Generation Technologies
