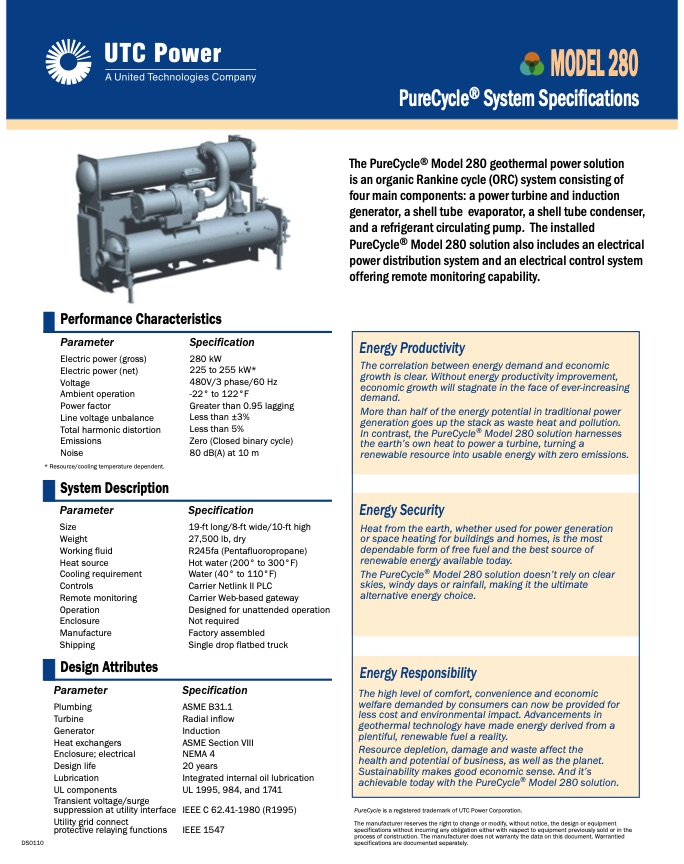

Text from PDF Page: 002

MODEL 280 PureCycle® System Specifications Performance Characteristics The PureCycle® Model 280 geothermal power solution is an organic Rankine cycle (ORC) system consisting of four main components: a power turbine and induction generator, a shell tube evaporator, a shell tube condenser, and a refrigerant circulating pump. The installed PureCycle® Model 280 solution also includes an electrical power distribution system and an electrical control system offering remote monitoring capability. Energy Productivity The correlation between energy demand and economic growth is clear. Without energy productivity improvement, economic growth will stagnate in the face of ever-increasing demand. More than half of the energy potential in traditional power generation goes up the stack as waste heat and pollution. In contrast, the PureCycle® Model 280 solution harnesses the earth’s own heat to power a turbine, turning a renewable resource into usable energy with zero emissions. Energy Security Heat from the earth, whether used for power generation or space heating for buildings and homes, is the most dependable form of free fuel and the best source of renewable energy available today. The PureCycle® Model 280 solution doesn’t rely on clear skies, windy days or rainfall, making it the ultimate alternative energy choice. Energy Responsibility The high level of comfort, convenience and economic welfare demanded by consumers can now be provided for less cost and environmental impact. Advancements in geothermal technology have made energy derived from a plentiful, renewable fuel a reality. Resource depletion, damage and waste affect the health and potential of business, as well as the planet. Sustainability makes good economic sense. And it’s achievable today with the PureCycle® Model 280 solution. Parameter Electric power (gross) Electric power (net) Voltage Ambient operation Power factor Line voltage unbalance Total harmonic distortion Emissions Noise * Resource/cooling temperature dependent. System Description Parameter Size Weight Working fluid Heat source Cooling requirement Controls Remote monitoring Operation Enclosure Manufacture Shipping Design Attributes Parameter Plumbing Turbine Generator Heat exchangers Enclosure; electrical Design life Lubrication UL components Transient voltage/surge suppression at utility interface Utility grid connect protective relaying functions Specification 280 kW 225 to 255 kW* 480V/3 phase/60 Hz -22° to 122°F Greater than 0.95 lagging Less than ±3% Less than 5% Zero (Closed binary cycle) 80 dB(A) at 10 m Specification 19-ft long/8-ft wide/10-ft high 27,500 lb, dry R245fa (Pentafluoropropane) Hot water (200° to 300°F) Water (40° to 110°F) Carrier Netlink II PLC Carrier Web-based gateway Designed for unattended operation Not required Factory assembled Single drop flatbed truck Specification ASME B31.1 Radial inflow Induction ASME Section VIII NEMA 4 20 years Integrated internal oil lubrication UL 1995, 984, and 1741 IEEE C 62.41-1980 (R1995) IEEE 1547 PureCycle is a registered trademark of UTC Power Corporation. The manufacturer reserves the right to change or modify, without notice, the design or equipment specifications without incurring any obligation either with respect to equipment previously sold or in the process of construction. The manufacturer does not warranty the data on this document. Warrantied specifications are documented separately. DS0110
