PDF Publication Title:
Text from PDF Page: 004

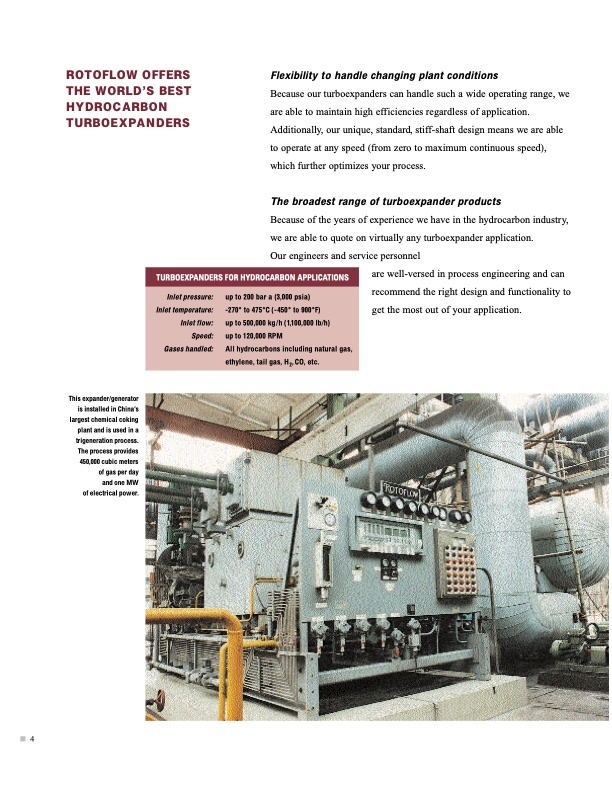

TURBOEXPANDERS FOR HYDROCARBON APPLICATIONS Inlet pressure: Inlet temperature: Inlet flow: Speed: Gases handled: up to 200 bar a (3,000 psia) -270° to 475°C (-450° to 900°F) up to 500,000 kg/h (1,100,000 lb/h) up to 120,000 RPM All hydrocarbons including natural gas, ethylene, tail gas, H 2, CO, etc. 4 ROTOFLOW OFFERS THE WORLD’S BEST HYDROCARBON TURBOEXPANDERS Flexibility to handle changing plant conditions Because our turboexpanders can handle such a wide operating range, we are able to maintain high efficiencies regardless of application. Additionally, our unique, standard, stiff-shaft design means we are able to operate at any speed (from zero to maximum continuous speed), which further optimizes your process. The broadest range of turboexpander products Because of the years of experience we have in the hydrocarbon industry, we are able to quote on virtually any turboexpander application. Our engineers and service personnel are well-versed in process engineering and can recommend the right design and functionality to get the most out of your application. This expander/generator is installed in China’s largest chemical coking plant and is used in a trigeneration process. The process provides 450,000 cubic meters of gas per day and one MW of electrical power.PDF Image | Rotoflow turboexpanders for hydrocarbon applications
PDF Search Title:
Rotoflow turboexpanders for hydrocarbon applicationsOriginal File Name Searched:
rotoflow_overview.pdfDIY PDF Search: Google It | Yahoo | Bing
