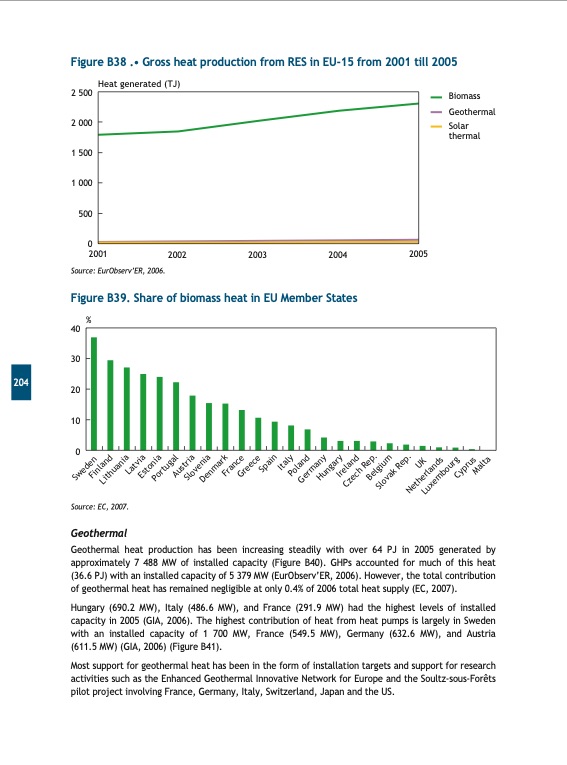

Figure B38 . Gross heat production from RES in EU-15 from 2001 till 2005 Heat generated (TJ) 2 500 2 000 1 500 1 000 500 0 2001 2002 Source: EurObserv’ER, 2006. Biomass Geothermal Solar thermal 204 Figure B39. Share of biomass heat in EU Member States % 40 30 20 10 0 Source: EC, 2007. Geothermal 2003 2004 2005 Geothermal heat production has been increasing steadily with over 64 PJ in 2005 generated by approximately 7 488 MW of installed capacity (Figure B40). GHPs accounted for much of this heat (36.6 PJ) with an installed capacity of 5 379 MW (EurObserv’ER, 2006). However, the total contribution of geothermal heat has remained negligible at only 0.4% of 2006 total heat supply (EC, 2007). Hungary (690.2 MW), Italy (486.6 MW), and France (291.9 MW) had the highest levels of installed capacity in 2005 (GIA, 2006). The highest contribution of heat from heat pumps is largely in Sweden with an installed capacity of 1 700 MW, France (549.5 MW), Germany (632.6 MW), and Austria (611.5 MW) (GIA, 2006) (Figure B41). Most support for geothermal heat has been in the form of installation targets and support for research activities such as the Enhanced Geothermal Innovative Network for Europe and the Soultz-sous-Forêts pilot project involving France, Germany, Italy, Switzerland, Japan and the US. Sweden Finland Lithuania Latvia Estonia Portugal Austria Slovenia Denmark France Greece Spain Italy Poland Germany Hungary Ireland Czech Rep. Belgium Slovak Rep. UK Netherlands Luxembourg Cyprus MaltaPDF Image | RENEWABLES FOR HEATING AND COOLING
