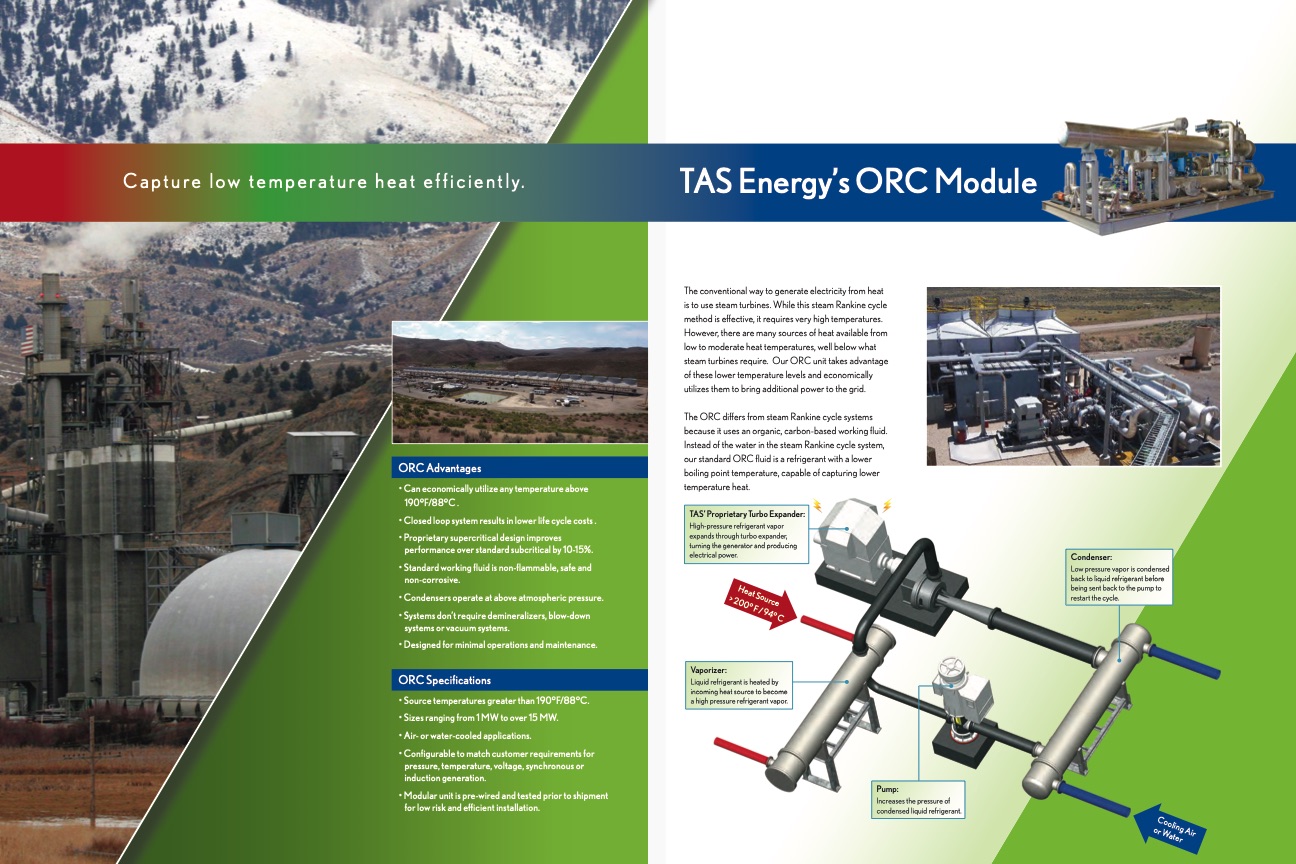

Capture low temperature heat efficiently. TAS Energy’s ORC Module The conventional way to generate electricity from heat is to use steam turbines. While this steam Rankine cycle method is effective, it requires very high temperatures. However, there are many sources of heat available from low to moderate heat temperatures, well below what steam turbines require. Our ORC unit takes advantage of these lower temperature levels and economically utilizes them to bring additional power to the grid. The ORC differs from steam Rankine cycle systems because it uses an organic, carbon-based working fluid. Instead of the water in the steam Rankine cycle system, our standard ORC fluid is a refrigerant with a lower boiling point temperature, capable of capturing lower temperature heat. ORC Advantages • Can economically utilize any temperature above 190°F/88°C . • Closed loop system results in lower life cycle costs . • Proprietary supercritical design improves performance over standard subcritical by 10-15%. • Standard working fluid is non-flammable, safe and non-corrosive. • Condensers operate at above atmospheric pressure. • Systems don’t require demineralizers, blow-down systems or vacuum systems. • Designed for minimal operations and maintenance. • Source temperatures greater than 190°F/88°C. • Sizes ranging from 1 MW to over 15 MW. • Air- or water-cooled applications. • Configurable to match customer requirements for pressure, temperature, voltage, synchronous or induction generation. • Modular unit is pre-wired and tested prior to shipment for low risk and efficient installation. ORC Specifications TAS’ Proprietary Turbo Expander: High-pressure refrigerant vapor expands through turbo expander, turning the generator and producing electrical power. Vaporizer: Liquid refrigerant is heated by incoming heat source to become a high pressure refrigerant vapor. Pump: Increases the pressure of condensed liquid refrigerant. Condenser: Low pressure vapor is condensed back to liquid refrigerant before being sent back to the pump to restart the cycle. Heat Source > 200° F / 94° C Cooling Air or WaterPDF Image | Renewable Energy Systems Improving your efficiency
