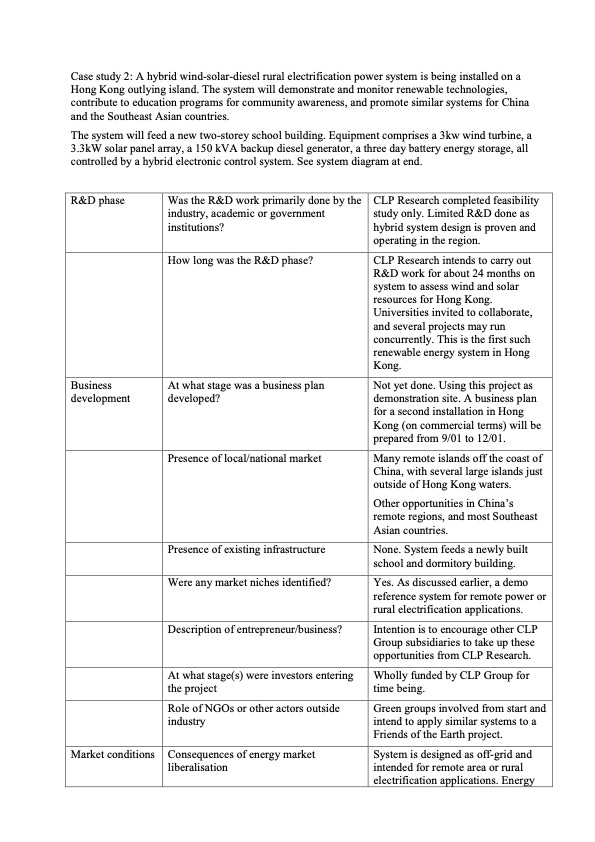

Case study 2: A hybrid wind-solar-diesel rural electrification power system is being installed on a Hong Kong outlying island. The system will demonstrate and monitor renewable technologies, contribute to education programs for community awareness, and promote similar systems for China and the Southeast Asian countries. The system will feed a new two-storey school building. Equipment comprises a 3kw wind turbine, a 3.3kW solar panel array, a 150 kVA backup diesel generator, a three day battery energy storage, all controlled by a hybrid electronic control system. See system diagram at end. R&D phase Was the R&D work primarily done by the industry, academic or government institutions? CLP Research completed feasibility study only. Limited R&D done as hybrid system design is proven and operating in the region. How long was the R&D phase? CLP Research intends to carry out R&D work for about 24 months on system to assess wind and solar resources for Hong Kong. Universities invited to collaborate, and several projects may run concurrently. This is the first such renewable energy system in Hong Kong. Business development At what stage was a business plan developed? Not yet done. Using this project as demonstration site. A business plan for a second installation in Hong Kong (on commercial terms) will be prepared from 9/01 to 12/01. Presence of local/national market Many remote islands off the coast of China, with several large islands just outside of Hong Kong waters. Other opportunities in China’s remote regions, and most Southeast Asian countries. Were any market niches identified? Yes. As discussed earlier, a demo reference system for remote power or rural electrification applications. Description of entrepreneur/business? Intention is to encourage other CLP Group subsidiaries to take up these opportunities from CLP Research. Role of NGOs or other actors outside industry Green groups involved from start and intend to apply similar systems to a Friends of the Earth project. Market conditions Presence of existing infrastructure At what stage(s) were investors entering the project Consequences of energy market liberalisation None. System feeds a newly built school and dormitory building. Wholly funded by CLP Group for time being. System is designed as off-grid and intended for remote area or rural electrification applications. EnergyPDF Image | Organisations in Different Renewables
