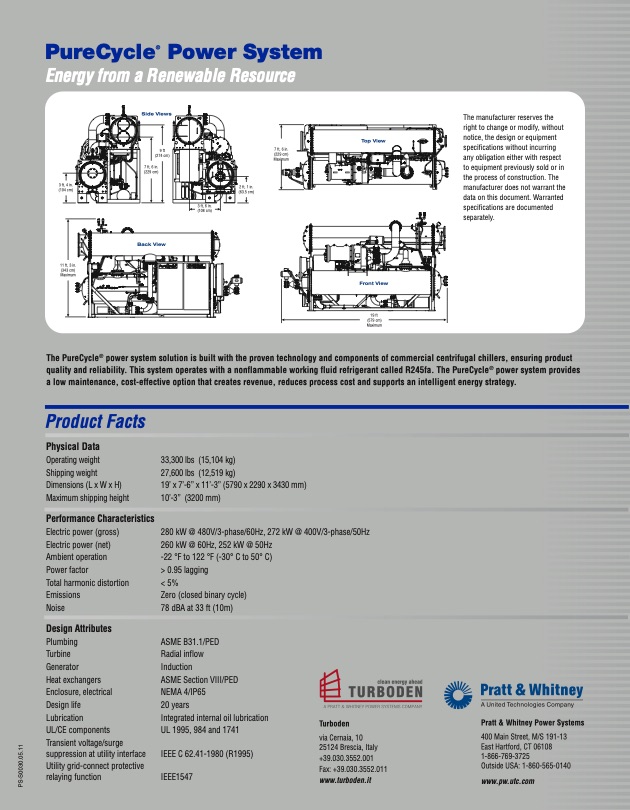

Text from PDF Page: 002
PureCycle® Power System Energy from a Renewable Resource 3 ft, 4 in. (104 cm) 11 ft, 3 in. (343 cm) Maximum 2 ft, 1 in. (63.5 cm) Side Views 9 ft (274 cm) 7 ft, 6 in. (229 cm) Back View Top View The manufacturer reserves the right to change or modify, without notice, the design or equipment specifications without incurring any obligation either with respect to equipment previously sold or in the process of construction. The manufacturer does not warrant the data on this document. Warranted specifications are documented separately. 3 ft, 6 in. (108 cm) 7 ft, 6 in. (229 cm) Maximum The PureCycle® power system solution is built with the proven technology and components of commercial centrifugal chillers, ensuring product quality and reliability. This system operates with a nonflammable working fluid refrigerant called R245fa. The PureCycle® power system provides a low maintenance, cost-effective option that creates revenue, reduces process cost and supports an intelligent energy strategy. Product Facts Physical Data Operating weight Shipping weight Dimensions (L x W x H) Maximumshippingheight Performance Characteristics Electric power (gross) Electric power (net) Ambient operation Power factor Total harmonic distortion Emissions Noise Design Attributes Plumbing Turbine Generator Heat exchangers Enclosure, electrical Design life Lubrication UL/CE components Transient voltage/surge suppression at utility interface Utility grid-connect protective relaying function 33,300 lbs (15,104 kg) 27,600 lbs (12,519 kg) 19’ x 7’-6” x 11’-3” (5790 x 2290 x 3430 mm) 10’-3” (3200mm) 280 kW @ 480V/3-phase/60Hz, 272 kW @ 400V/3-phase/50Hz 260 kW @ 60Hz, 252 kW @ 50Hz -22 °F to 122 °F (-30° C to 50° C) > 0.95 lagging < 5% Zero (closed binary cycle) 78 dBA at 33 ft (10m) ASME B31.1/PED Radial inflow Induction ASME Section VIII/PED NEMA 4/IP65 20 years Integrated internal oil lubrication UL 1995, 984 and 1741 IEEE C 62.41-1980 (R1995) IEEE1547 Turboden via Cernaia, 10 25124 Brescia, Italy +39.030.3552.001 Fax: +39.030.3552.011 www.turboden.it Pratt & Whitney Power Systems 400 Main Street, M/S 191-13 East Hartford, CT 06108 1-866-769-3725 Outside USA: 1-860-565-0140 www.pw.utc.com Front View 19 ft (579 cm) Maximum PS-S0030.05.11PDF Image | Model 280PureCycle Power System Energy
