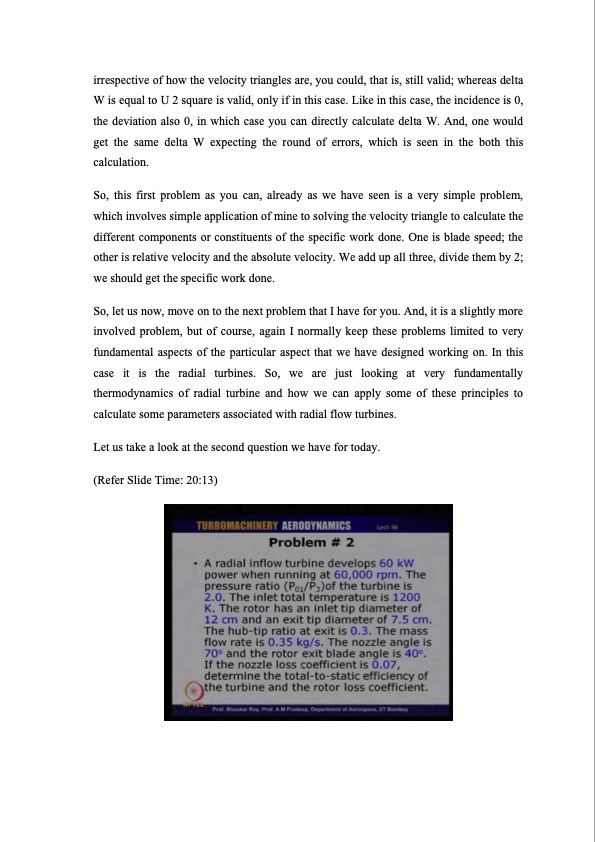

irrespective of how the velocity triangles are, you could, that is, still valid; whereas delta W is equal to U 2 square is valid, only if in this case. Like in this case, the incidence is 0, the deviation also 0, in which case you can directly calculate delta W. And, one would get the same delta W expecting the round of errors, which is seen in the both this calculation. So, this first problem as you can, already as we have seen is a very simple problem, which involves simple application of mine to solving the velocity triangle to calculate the different components or constituents of the specific work done. One is blade speed; the other is relative velocity and the absolute velocity. We add up all three, divide them by 2; we should get the specific work done. So, let us now, move on to the next problem that I have for you. And, it is a slightly more involved problem, but of course, again I normally keep these problems limited to very fundamental aspects of the particular aspect that we have designed working on. In this case it is the radial turbines. So, we are just looking at very fundamentally thermodynamics of radial turbine and how we can apply some of these principles to calculate some parameters associated with radial flow turbines. Let us take a look at the second question we have for today. (Refer Slide Time: 20:13)PDF Image | Turbomachinery Aerodyanmics
