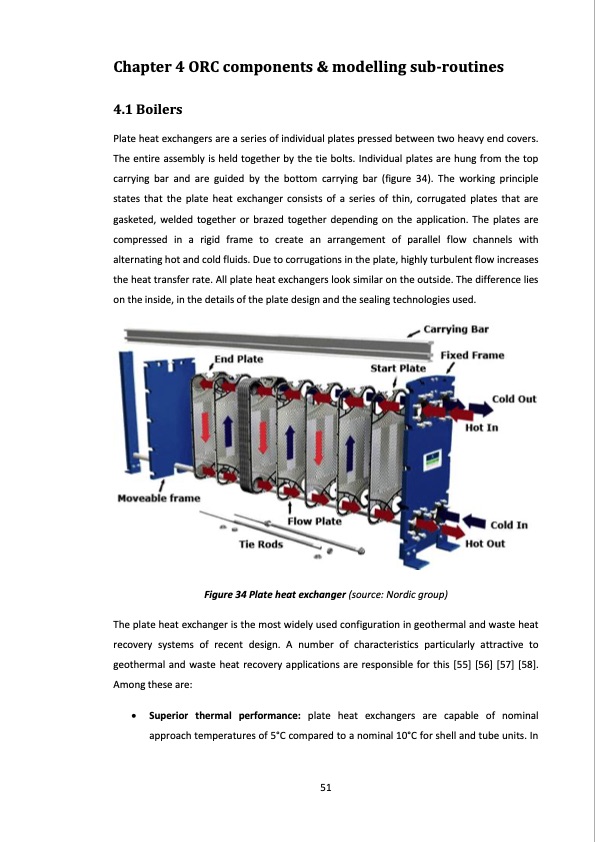

Chapter 4 ORC components & modelling sub-routines 4.1 Boilers Plate heat exchangers are a series of individual plates pressed between two heavy end covers. The entire assembly is held together by the tie bolts. Individual plates are hung from the top carrying bar and are guided by the bottom carrying bar (figure 34). The working principle states that the plate heat exchanger consists of a series of thin, corrugated plates that are gasketed, welded together or brazed together depending on the application. The plates are compressed in a rigid frame to create an arrangement of parallel flow channels with alternating hot and cold fluids. Due to corrugations in the plate, highly turbulent flow increases the heat transfer rate. All plate heat exchangers look similar on the outside. The difference lies on the inside, in the details of the plate design and the sealing technologies used. Figure 34 Plate heat exchanger (source: Nordic group) The plate heat exchanger is the most widely used configuration in geothermal and waste heat recovery systems of recent design. A number of characteristics particularly attractive to geothermal and waste heat recovery applications are responsible for this [55] [56] [57] [58]. Among these are: Superior thermal performance: plate heat exchangers are capable of nominal approach temperatures of 5°C compared to a nominal 10°C for shell and tube units. In 51PDF Image | study of ORC with the expansion process twin screw machines
