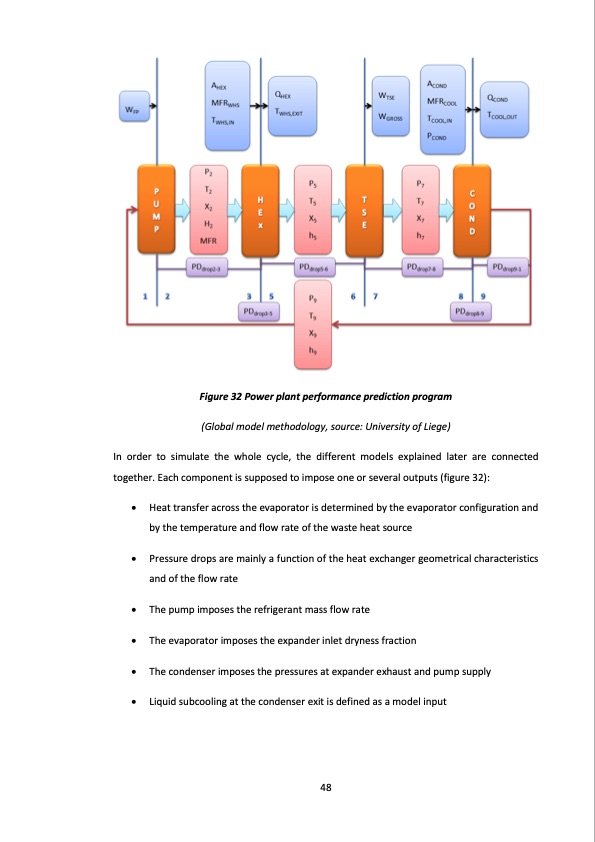

Figure 32 Power plant performance prediction program (Global model methodology, source: University of Liege) In order to simulate the whole cycle, the different models explained later are connected together. Each component is supposed to impose one or several outputs (figure 32): Heat transfer across the evaporator is determined by the evaporator configuration and by the temperature and flow rate of the waste heat source Pressure drops are mainly a function of the heat exchanger geometrical characteristics and of the flow rate The pump imposes the refrigerant mass flow rate The evaporator imposes the expander inlet dryness fraction The condenser imposes the pressures at expander exhaust and pump supply Liquid subcooling at the condenser exit is defined as a model input 48PDF Image | study of ORC with the expansion process twin screw machines
