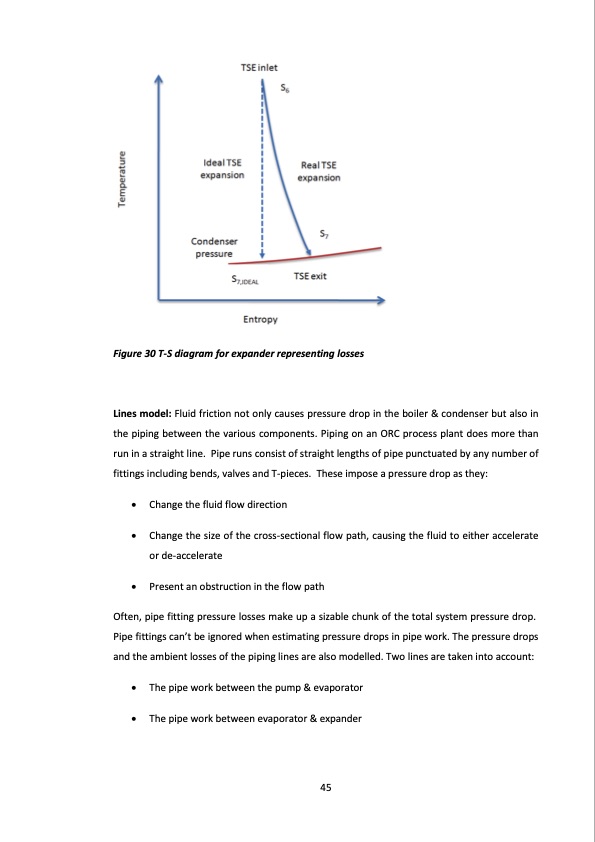

Figure 30 T-S diagram for expander representing losses Lines model: Fluid friction not only causes pressure drop in the boiler & condenser but also in the piping between the various components. Piping on an ORC process plant does more than run in a straight line. Pipe runs consist of straight lengths of pipe punctuated by any number of fittings including bends, valves and T-pieces. These impose a pressure drop as they: Change the fluid flow direction Change the size of the cross-sectional flow path, causing the fluid to either accelerate or de-accelerate Present an obstruction in the flow path Often, pipe fitting pressure losses make up a sizable chunk of the total system pressure drop. Pipe fittings can’t be ignored when estimating pressure drops in pipe work. The pressure drops and the ambient losses of the piping lines are also modelled. Two lines are taken into account: The pipe work between the pump & evaporator The pipe work between evaporator & expander 45PDF Image | study of ORC with the expansion process twin screw machines
