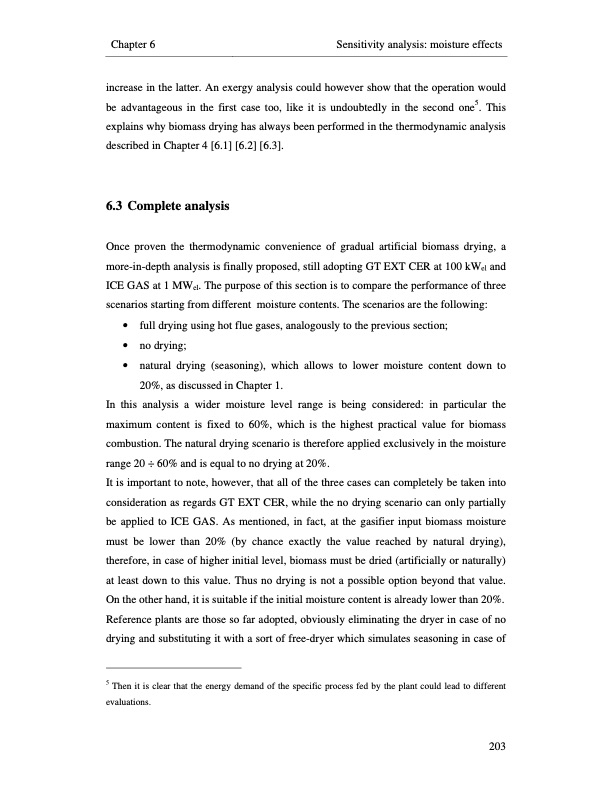

Chapter 6 Sensitivity analysis: moisture effects increase in the latter. An exergy analysis could however show that the operation would be advantageous in the first case too, like it is undoubtedly in the second one5. This explains why biomass drying has always been performed in the thermodynamic analysis described in Chapter 4 [6.1] [6.2] [6.3]. 6.3 Complete analysis Once proven the thermodynamic convenience of gradual artificial biomass drying, a more-in-depth analysis is finally proposed, still adopting GT EXT CER at 100 kWel and ICE GAS at 1 MWel. The purpose of this section is to compare the performance of three scenarios starting from different moisture contents. The scenarios are the following: • full drying using hot flue gases, analogously to the previous section; • no drying; • natural drying (seasoning), which allows to lower moisture content down to 20%, as discussed in Chapter 1. In this analysis a wider moisture level range is being considered: in particular the maximum content is fixed to 60%, which is the highest practical value for biomass combustion. The natural drying scenario is therefore applied exclusively in the moisture range 20 ÷ 60% and is equal to no drying at 20%. It is important to note, however, that all of the three cases can completely be taken into consideration as regards GT EXT CER, while the no drying scenario can only partially be applied to ICE GAS. As mentioned, in fact, at the gasifier input biomass moisture must be lower than 20% (by chance exactly the value reached by natural drying), therefore, in case of higher initial level, biomass must be dried (artificially or naturally) at least down to this value. Thus no drying is not a possible option beyond that value. On the other hand, it is suitable if the initial moisture content is already lower than 20%. Reference plants are those so far adopted, obviously eliminating the dryer in case of no drying and substituting it with a sort of free-dryer which simulates seasoning in case of 5 Then it is clear that the energy demand of the specific process fed by the plant could lead to different evaluations. 203PDF Image | SMALL-SCALE BIOMASS POWER GENERATION
