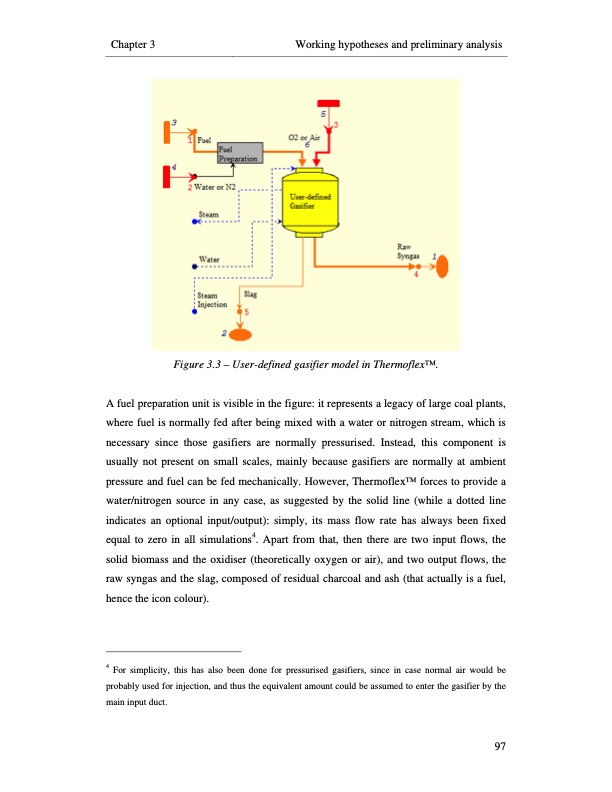

Chapter 3 Working hypotheses and preliminary analysis Figure 3.3 – User-defined gasifier model in ThermoflexTM. A fuel preparation unit is visible in the figure: it represents a legacy of large coal plants, where fuel is normally fed after being mixed with a water or nitrogen stream, which is necessary since those gasifiers are normally pressurised. Instead, this component is usually not present on small scales, mainly because gasifiers are normally at ambient pressure and fuel can be fed mechanically. However, ThermoflexTM forces to provide a water/nitrogen source in any case, as suggested by the solid line (while a dotted line indicates an optional input/output): simply, its mass flow rate has always been fixed equal to zero in all simulations4. Apart from that, then there are two input flows, the solid biomass and the oxidiser (theoretically oxygen or air), and two output flows, the raw syngas and the slag, composed of residual charcoal and ash (that actually is a fuel, hence the icon colour). 4 For simplicity, this has also been done for pressurised gasifiers, since in case normal air would be probably used for injection, and thus the equivalent amount could be assumed to enter the gasifier by the main input duct. 97PDF Image | SMALL-SCALE BIOMASS POWER GENERATION
