PDF Publication Title:
Text from PDF Page: 122

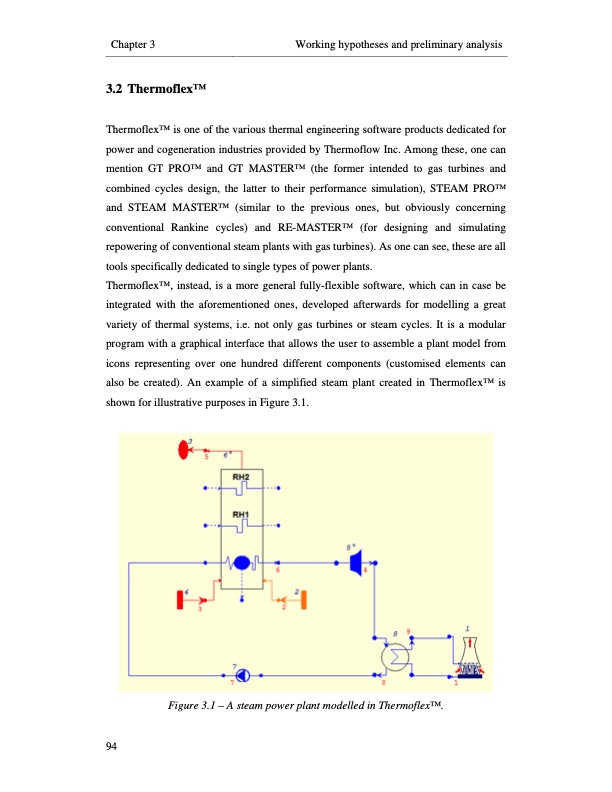

Chapter 3 Working hypotheses and preliminary analysis 3.2 ThermoflexTM ThermoflexTM is one of the various thermal engineering software products dedicated for power and cogeneration industries provided by Thermoflow Inc. Among these, one can mention GT PROTM and GT MASTERTM (the former intended to gas turbines and combined cycles design, the latter to their performance simulation), STEAM PROTM and STEAM MASTERTM (similar to the previous ones, but obviously concerning conventional Rankine cycles) and RE-MASTERTM (for designing and simulating repowering of conventional steam plants with gas turbines). As one can see, these are all tools specifically dedicated to single types of power plants. ThermoflexTM, instead, is a more general fully-flexible software, which can in case be integrated with the aforementioned ones, developed afterwards for modelling a great variety of thermal systems, i.e. not only gas turbines or steam cycles. It is a modular program with a graphical interface that allows the user to assemble a plant model from icons representing over one hundred different components (customised elements can also be created). An example of a simplified steam plant created in ThermoflexTM is shown for illustrative purposes in Figure 3.1. Figure 3.1 – A steam power plant modelled in ThermoflexTM. 94PDF Image | SMALL-SCALE BIOMASS POWER GENERATION
PDF Search Title:
SMALL-SCALE BIOMASS POWER GENERATIONOriginal File Name Searched:
PhD_thesis_Samuel_Carrara.pdfDIY PDF Search: Google It | Yahoo | Bing
