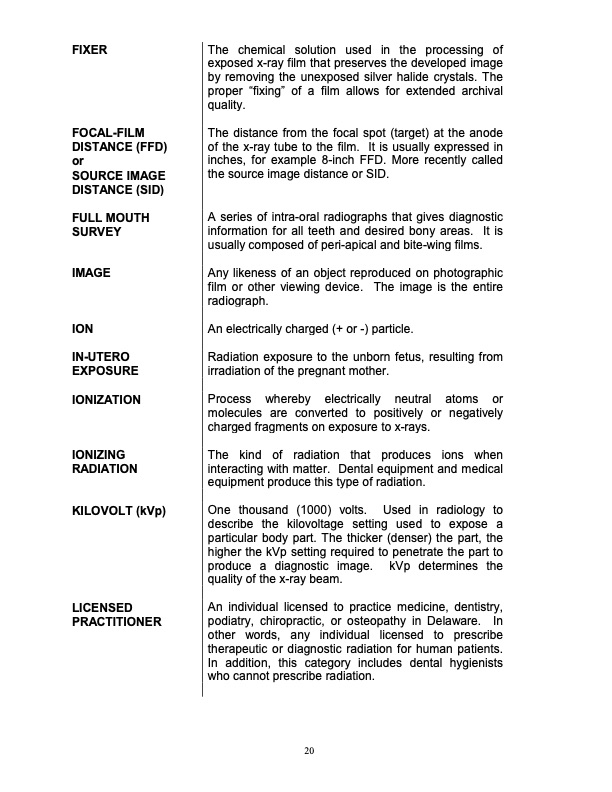

FIXER FOCAL-FILM DISTANCE (FFD) or SOURCE IMAGE DISTANCE (SID) FULL MOUTH SURVEY IMAGE ION IN-UTERO EXPOSURE IONIZATION IONIZING RADIATION KILOVOLT (kVp) LICENSED PRACTITIONER The chemical solution used in the processing of exposed x-ray film that preserves the developed image by removing the unexposed silver halide crystals. The proper “fixing” of a film allows for extended archival quality. The distance from the focal spot (target) at the anode of the x-ray tube to the film. It is usually expressed in inches, for example 8-inch FFD. More recently called the source image distance or SID. A series of intra-oral radiographs that gives diagnostic information for all teeth and desired bony areas. It is usually composed of peri-apical and bite-wing films. Any likeness of an object reproduced on photographic film or other viewing device. The image is the entire radiograph. An electrically charged (+ or -) particle. Radiation exposure to the unborn fetus, resulting from irradiation of the pregnant mother. Process whereby electrically neutral atoms or molecules are converted to positively or negatively charged fragments on exposure to x-rays. The kind of radiation that produces ions when interacting with matter. Dental equipment and medical equipment produce this type of radiation. One thousand (1000) volts. Used in radiology to describe the kilovoltage setting used to expose a particular body part. The thicker (denser) the part, the higher the kVp setting required to penetrate the part to produce a diagnostic image. kVp determines the quality of the x-ray beam. An individual licensed to practice medicine, dentistry, podiatry, chiropractic, or osteopathy in Delaware. In other words, any individual licensed to prescribe therapeutic or diagnostic radiation for human patients. In addition, this category includes dental hygienists who cannot prescribe radiation. 20PDF Image | Radiation Machine Registration Permit Manual
