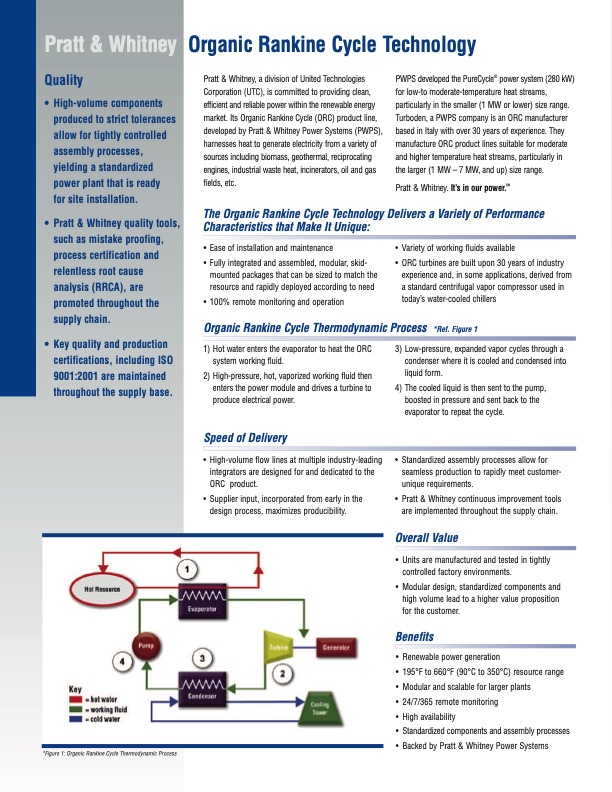

Pratt & Whitney Organic Rankine Cycle Technology Quality • High-volume components produced to strict tolerances allow for tightly controlled assembly processes, yielding a standardized power plant that is ready for site installation. • Pratt & Whitney quality tools, such as mistake proofing, process certification and relentless root cause analysis (RRCA), are promoted throughout the supply chain. • Key quality and production certifications, including ISO 9001:2001 are maintained throughout the supply base. Pratt & Whitney, a division of United Technologies Corporation (UTC), is committed to providing clean, efficient and reliable power within the renewable energy market. Its Organic Rankine Cycle (ORC) product line, developed by Pratt & Whitney Power Systems (PWPS), harnesses heat to generate electricity from a variety of sources including biomass, geothermal, reciprocating engines, industrial waste heat, incinerators, oil and gas fields, etc. PWPS developed the PureCycle® power system (280 kW) for low-to moderate-temperature heat streams, particularly in the smaller (1 MW or lower) size range. Turboden, a PWPS company is an ORC manufacturer based in Italy with over 30 years of experience. They manufacture ORC product lines suitable for moderate and higher temperature heat streams, particularly in the larger (1 MW – 7 MW, and up) size range. Pratt & Whitney. It’s in our power.TM The Organic Rankine Cycle Technology Delivers a Variety of Performance Characteristics that Make It Unique: • Ease of installation and maintenance • Fully integrated and assembled, modular, skid- mounted packages that can be sized to match the resource and rapidly deployed according to need • 100% remote monitoring and operation • Variety of working fluids available • ORC turbines are built upon 30 years of industry experience and, in some applications, derived from a standard centrifugal vapor compressor used in today’s water-cooled chillers Organic Rankine Cycle Thermodynamic Process *Ref. Figure 1 1) Hot water enters the evaporator to heat the ORC system working fluid. 2) High-pressure, hot, vaporized working fluid then enters the power module and drives a turbine to produce electrical power. Speed of Delivery • High-volume flow lines at multiple industry-leading integrators are designed for and dedicated to the ORC product. • Supplier input, incorporated from early in the design process, maximizes producibility. 3) Low-pressure, expanded vapor cycles through a condenser where it is cooled and condensed into liquid form. 4) The cooled liquid is then sent to the pump, boosted in pressure and sent back to the evaporator to repeat the cycle. • Standardized assembly processes allow for seamless production to rapidly meet customer- unique requirements. • Pratt & Whitney continuous improvement tools are implemented throughout the supply chain. Overall Value • Units are manufactured and tested in tightly controlled factory environments. • Modular design, standardized components and high volume lead to a higher value proposition for the customer. Benefits • Renewable power generation • 195°F to 660°F (90°C to 350°C) resource range • Modular and scalable for larger plants • 24/7/365 remote monitoring • High availability • Standardized components and assembly processes • Backed by Pratt & Whitney Power Systems *Figure 1: Organic Rankine Cycle Thermodynamic ProcessPDF Image | Pratt & Whitney Power Systems Organic Rankine Cycle Technology
