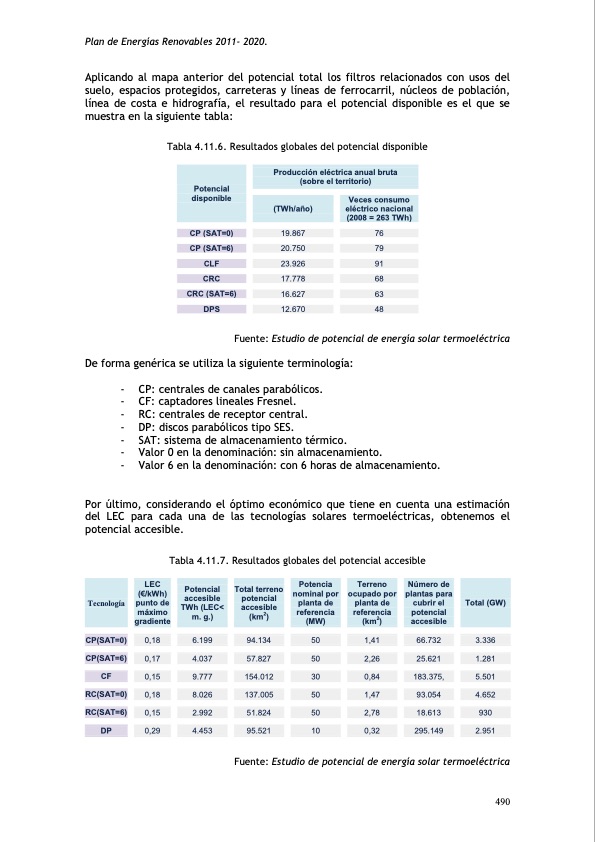

Text from PDF Page: 528
Plan de Energías Renovables 2011- 2020. Aplicando al mapa anterior del potencial total los filtros relacionados con usos del suelo, espacios protegidos, carreteras y líneas de ferrocarril, núcleos de población, línea de costa e hidrografía, el resultado para el potencial disponible es el que se muestra en la siguiente tabla: Tabla 4.11.6. Resultados globales del potencial disponible Potencial disponible Producción eléctrica anual bruta (sobre el territorio) DPS (TWh/año) Veces consumo eléctrico nacional (2008 = 263 TWh) CP (SAT=0) 19.867 76 CP (SAT=6) 20.750 79 CLF 23.926 91 CRC 17.778 68 CRC (SAT=6) 16.627 63 12.670 48 Fuente: Estudio de potencial de energía solar termoeléctrica De forma genérica se utiliza la siguiente terminología: - CP: centrales de canales parabólicos. - CF: captadores lineales Fresnel. - RC: centrales de receptor central. - DP: discos parabólicos tipo SES. - SAT: sistema de almacenamiento térmico. - Valor 0 en la denominación: sin almacenamiento. - Valor 6 en la denominación: con 6 horas de almacenamiento. Por último, considerando el óptimo económico que tiene en cuenta una estimación del LEC para cada una de las tecnologías solares termoeléctricas, obtenemos el potencial accesible. Tabla 4.11.7. Resultados globales del potencial accesible LEC (€/kWh) punto de máximo gradiente Potencia nominal por planta de referencia (MW) Terreno ocupado por planta de referencia (km2) Número de plantas para cubrir el potencial accesible Potencial accesible TWh (LEC< m. g.) Total terreno potencial accesible (km2) Total (GW) Tecnología CP(SAT=0) 0,18 CP(SAT=6) 0,17 CF 0,15 RC(SAT=0) 0,18 RC(SAT=6) 0,15 DP 0,29 4.453 95.521 10 0,32 295.149 930 2.951 6.199 94.134 50 1,41 66.732 3.336 4.037 57.827 50 2,26 25.621 1.281 9.777 154.012 30 0,84 183.375, 5.501 8.026 137.005 50 1,47 93.054 4.652 2.992 51.824 50 2,78 18.613 Fuente: Estudio de potencial de energía solar termoeléctrica 490PDF Image | PLAN DE ENERGIAS RENOVABLES
