Text from PDF Page: 456

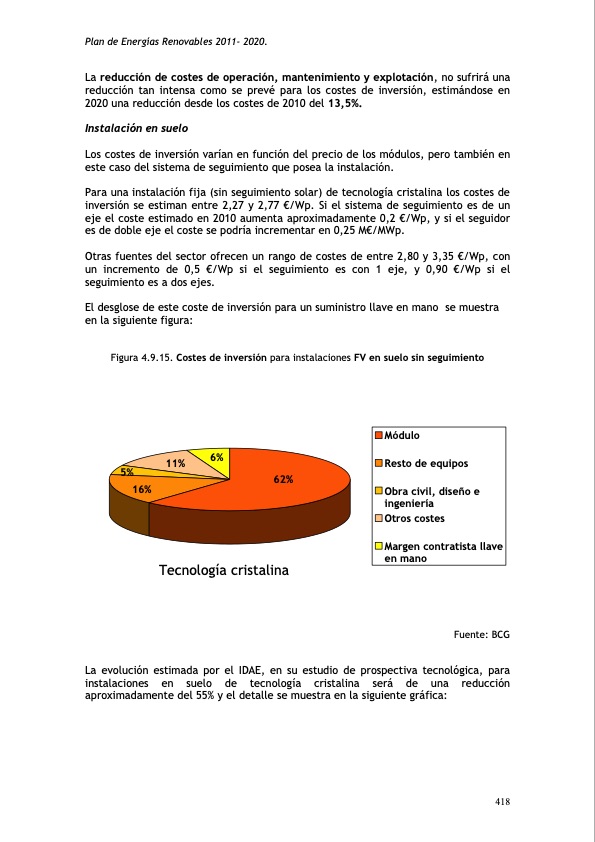

Plan de Energías Renovables 2011- 2020. La reducción de costes de operación, mantenimiento y explotación, no sufrirá una reducción tan intensa como se prevé para los costes de inversión, estimándose en 2020 una reducción desde los costes de 2010 del 13,5%. Instalación en suelo Los costes de inversión varían en función del precio de los módulos, pero también en este caso del sistema de seguimiento que posea la instalación. Para una instalación fija (sin seguimiento solar) de tecnología cristalina los costes de inversión se estiman entre 2,27 y 2,77 €/Wp. Si el sistema de seguimiento es de un eje el coste estimado en 2010 aumenta aproximadamente 0,2 €/Wp, y si el seguidor es de doble eje el coste se podría incrementar en 0,25 M€/MWp. Otras fuentes del sector ofrecen un rango de costes de entre 2,80 y 3,35 €/Wp, con un incremento de 0,5 €/Wp si el seguimiento es con 1 eje, y 0,90 €/Wp si el seguimiento es a dos ejes. El desglose de este coste de inversión para un suministro llave en mano se muestra en la siguiente figura: Figura 4.9.15. Costes de inversión para instalaciones FV en suelo sin seguimiento 5% 11% 16% 6% 62% Tecnología cristalina La evolución estimada por el IDAE, en su estudio de prospectiva tecnológica, para instalaciones en suelo de tecnología cristalina será de una reducción aproximadamente del 55% y el detalle se muestra en la siguiente gráfica: Módulo Resto de equipos Obra civil, diseño e ingeniería Otros costes Margen contratista llave en mano Fuente: BCG 418
