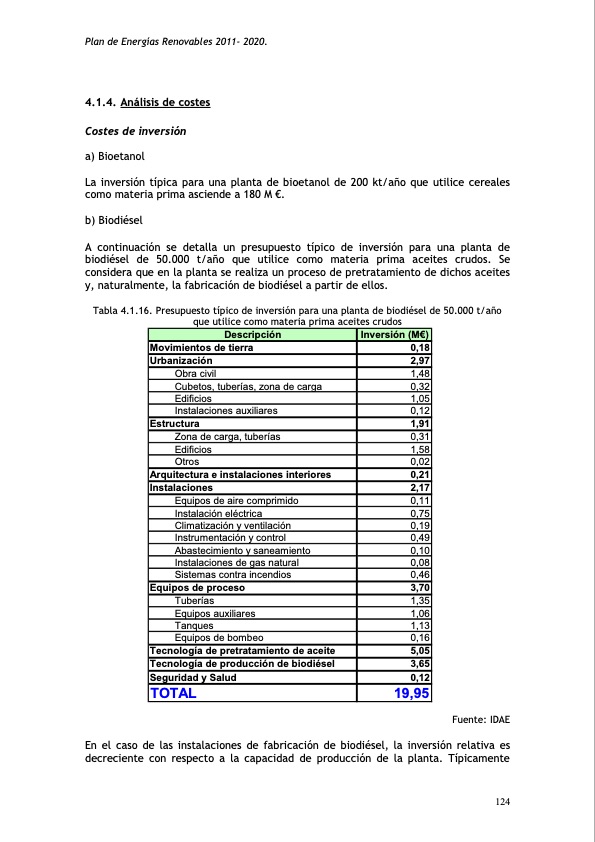

Plan de Energías Renovables 2011- 2020. 4.1.4. Análisis de costes Costes de inversión a) Bioetanol La inversión típica para una planta de bioetanol de 200 kt/año que utilice cereales como materia prima asciende a 180 M €. b) Biodiésel A continuación se detalla un presupuesto típico de inversión para una planta de biodiésel de 50.000 t/año que utilice como materia prima aceites crudos. Se considera que en la planta se realiza un proceso de pretratamiento de dichos aceites y, naturalmente, la fabricación de biodiésel a partir de ellos. Tabla 4.1.16. Presupuesto típico de inversión para una planta de biodiésel de 50.000 t/año que utilice como materia prima aceites crudos Descripción Inversión (M€) Movimientos de tierra 0,18 Urbanización 2,97 Obra civil 1,48 Cubetos, tuberías, zona de carga 0,32 Edificios 1,05 Instalaciones auxiliares 0,12 Estructura 1,91 Zona de carga, tuberías 0,31 Edificios 1,58 Otros 0,02 Arquitectura e instalaciones interiores 0,21 Instalaciones 2,17 Equipos de aire comprimido 0,11 Instalación eléctrica 0,75 Climatización y ventilación 0,19 Instrumentación y control 0,49 Abastecimiento y saneamiento 0,10 Instalaciones de gas natural 0,08 Sistemas contra incendios 0,46 Equipos de proceso 3,70 Tuberías 1,35 Equipos auxiliares 1,06 Tanques 1,13 Equipos de bombeo 0,16 Tecnología de pretratamiento de aceite 5,05 Tecnología de producción de biodiésel 3,65 Seguridad y Salud 0,12 TOTAL 19,95 Fuente: IDAE En el caso de las instalaciones de fabricación de biodiésel, la inversión relativa es decreciente con respecto a la capacidad de producción de la planta. Típicamente 124PDF Image | PLAN DE ENERGIAS RENOVABLES
