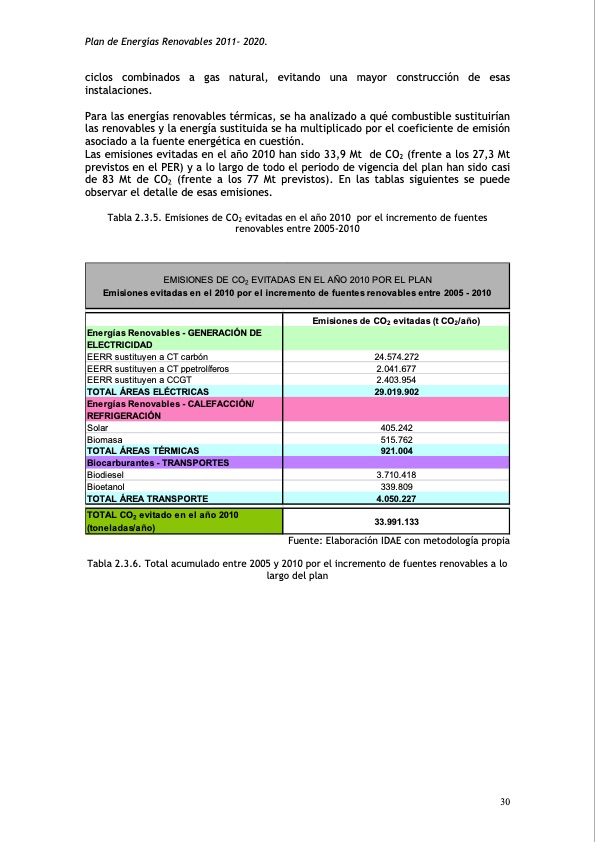

Text from PDF Page: 068

Plan de Energías Renovables 2011- 2020. ciclos combinados a gas natural, evitando una mayor construcción de esas instalaciones. Para las energías renovables térmicas, se ha analizado a qué combustible sustituirían las renovables y la energía sustituida se ha multiplicado por el coeficiente de emisión asociado a la fuente energética en cuestión. Las emisiones evitadas en el año 2010 han sido 33,9 Mt de CO2 (frente a los 27,3 Mt previstos en el PER) y a lo largo de todo el periodo de vigencia del plan han sido casi de 83 Mt de CO2 (frente a los 77 Mt previstos). En las tablas siguientes se puede observar el detalle de esas emisiones. Tabla 2.3.5. Emisiones de CO2 evitadas en el año 2010 por el incremento de fuentes renovables entre 2005-2010 EMISIONES DE CO2 EVITADAS EN EL AÑO 2010 POR EL PLAN Emisiones evitadas en el 2010 por el incremento de fuentes renovables entre 2005 - 2010 Energías Renovables - GENERACIÓN DE ELECTRICIDAD EERR sustituyen a CT carbón EERR sustituyen a CT ppetrolíferos Emisiones de CO2 evitadas (t CO2/año) 24.574.272 2.041.677 EERR sustituyen a CCGT TOTAL ÁREAS ELÉCTRICAS Energías Renovables - CALEFACCIÓN/ REFRIGERACIÓN Solar 2.403.954 29.019.902 405.242 Biomasa TOTAL ÁREAS TÉRMICAS Biocarburantes - TRANSPORTES Biodiesel TOTAL ÁREA TRANSPORTE 515.762 921.004 3.710.418 Bioetanol 339.809 4.050.227 TOTAL CO2 evitado en el año 2010 (toneladas/año) 33.991.133 Fuente: Elaboración IDAE con metodología propia Tabla 2.3.6. Total acumulado entre 2005 y 2010 por el incremento de fuentes renovables a lo largo del plan 30
