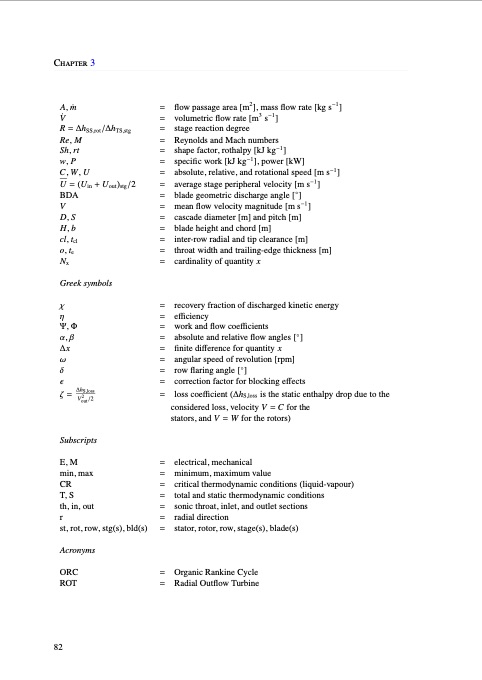

Text from PDF Page: 093
Chapter 3 A , m ̇ V ̇ R = ∆hSS,rot/∆hTS,stg Re, M Sh, rt w, P C, W, U U = (Uin + Uout)stg/2 BDA V D, S H, b cl, tcl o, te Nx Greek symbols χ η Ψ, Φ α, β ∆x ω δ ǫ ζ = ∆hS,loss V2 /2 out Subscripts E, M min, max CR T, S th, in, out r st, rot, row, stg(s), bld(s) Acronyms ORC ROT = flow passage area [m2 ], mass flow rate [kg s−1 ] = volumetric flow rate [m3 s−1 ] = stage reaction degree = Reynolds and Mach numbers = shape factor, rothalpy [kJ kg−1 ] = specific work [kJ kg−1 ], power [kW] = absolute, relative, and rotational speed [m s−1] = average stage peripheral velocity [m s−1 ] = blade geometric discharge angle [◦ ] = mean flow velocity magnitude [m s−1 ] = cascade diameter [m] and pitch [m] = blade height and chord [m] = inter-row radial and tip clearance [m] = throat width and trailing-edge thickness [m] = cardinality of quantity x = recovery fraction of discharged kinetic energy = efficiency = work and flow coefficients = absolute and relative flow angles [◦ ] = finite difference for quantity x = angular speed of revolution [rpm] = row flaring angle [◦ ] = correction factor for blocking effects = loss coefficient (∆h is the static enthalpy drop due to the S,loss considered loss, velocity V = C for the stators, and V = W for the rotors) = electrical, mechanical = minimum, maximum value = critical thermodynamic conditions (liquid-vapour) = total and static thermodynamic conditions = sonic throat, inlet, and outlet sections = radial direction = stator, rotor, row, stage(s), blade(s) = Organic Rankine Cycle = Radial Outflow Turbine 82PDF Image | New Concepts FOR Organic Rankine Cycle Power Systems
