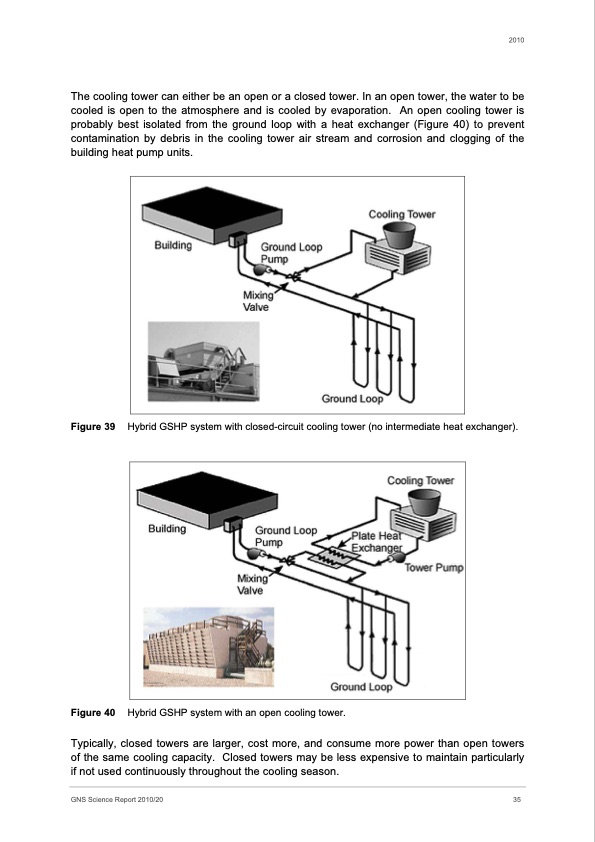

The cooling tower can either be an open or a closed tower. In an open tower, the water to be cooled is open to the atmosphere and is cooled by evaporation. An open cooling tower is probably best isolated from the ground loop with a heat exchanger (Figure 40) to prevent contamination by debris in the cooling tower air stream and corrosion and clogging of the building heat pump units. Figure 39 Hybrid GSHP system with closed-circuit cooling tower (no intermediate heat exchanger). Figure 40 Hybrid GSHP system with an open cooling tower. Typically, closed towers are larger, cost more, and consume more power than open towers of the same cooling capacity. Closed towers may be less expensive to maintain particularly if not used continuously throughout the cooling season. 2010 GNS Science Report 2010/20 35PDF Image | Low Enthalpy Geothermal Energy
