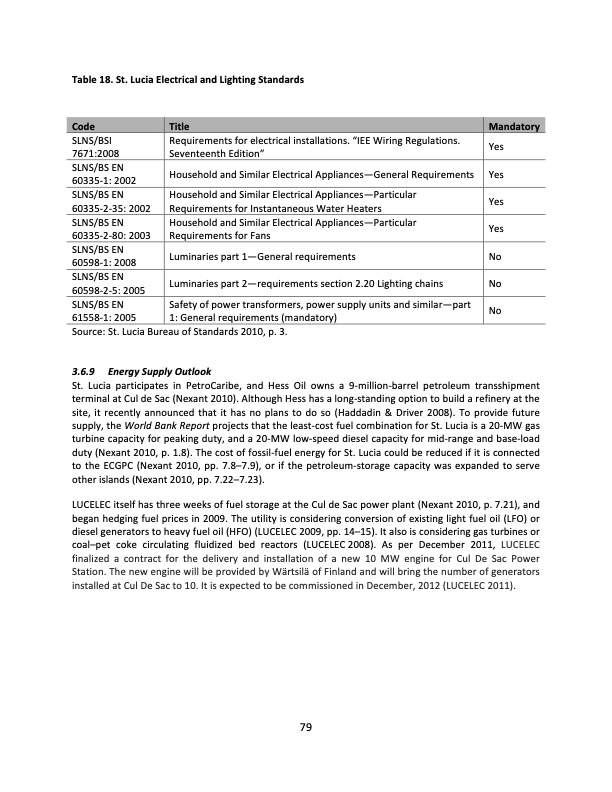

Table 18. St. Lucia Electrical and Lighting Standards Code Title Mandatory SLNS/BSI 7671:2008 SLNS/BS EN 60335-1: 2002 SLNS/BS EN 60335-2-35: 2002 SLNS/BS EN 60335-2-80: 2003 SLNS/BS EN 60598-1: 2008 SLNS/BS EN 60598-2-5: 2005 SLNS/BS EN 61558-1: 2005 Source: St. Lucia Bureau of Standards 2010, p. 3. 3.6.9 Energy Supply Outlook St. Lucia participates in PetroCaribe, and Hess Oil owns a 9-million-barrel petroleum transshipment terminal at Cul de Sac (Nexant 2010). Although Hess has a long-standing option to build a refinery at the site, it recently announced that it has no plans to do so (Haddadin & Driver 2008). To provide future supply, the World Bank Report projects that the least-cost fuel combination for St. Lucia is a 20-MW gas turbine capacity for peaking duty, and a 20-MW low-speed diesel capacity for mid-range and base-load duty (Nexant 2010, p. 1.8). The cost of fossil-fuel energy for St. Lucia could be reduced if it is connected to the ECGPC (Nexant 2010, pp. 7.8–7.9), or if the petroleum-storage capacity was expanded to serve other islands (Nexant 2010, pp. 7.22–7.23). LUCELEC itself has three weeks of fuel storage at the Cul de Sac power plant (Nexant 2010, p. 7.21), and began hedging fuel prices in 2009. The utility is considering conversion of existing light fuel oil (LFO) or diesel generators to heavy fuel oil (HFO) (LUCELEC 2009, pp. 14–15). It also is considering gas turbines or coal–pet coke circulating fluidized bed reactors (LUCELEC 2008). As per December 2011, LUCELEC finalized a contract for the delivery and installation of a new 10 MW engine for Cul De Sac Power Station. The new engine will be provided by Wärtsilä of Finland and will bring the number of generators installed at Cul De Sac to 10. It is expected to be commissioned in December, 2012 (LUCELEC 2011). Requirements for electrical installations. “IEE Wiring Regulations. Seventeenth Edition” Yes Household and Similar Electrical Appliances—General Requirements Yes Household and Similar Electrical Appliances—Particular Requirements for Instantaneous Water Heaters Household and Similar Electrical Appliances—Particular Requirements for Fans Yes Yes Luminaries part 1—General requirements No Luminaries part 2—requirements section 2.20 Lighting chains No Safety of power transformers, power supply units and similar—part 1: General requirements (mandatory) No 79PDF Image | Energy Policy and Analysis Caribbean
