PDF Publication Title:
Text from PDF Page: 117

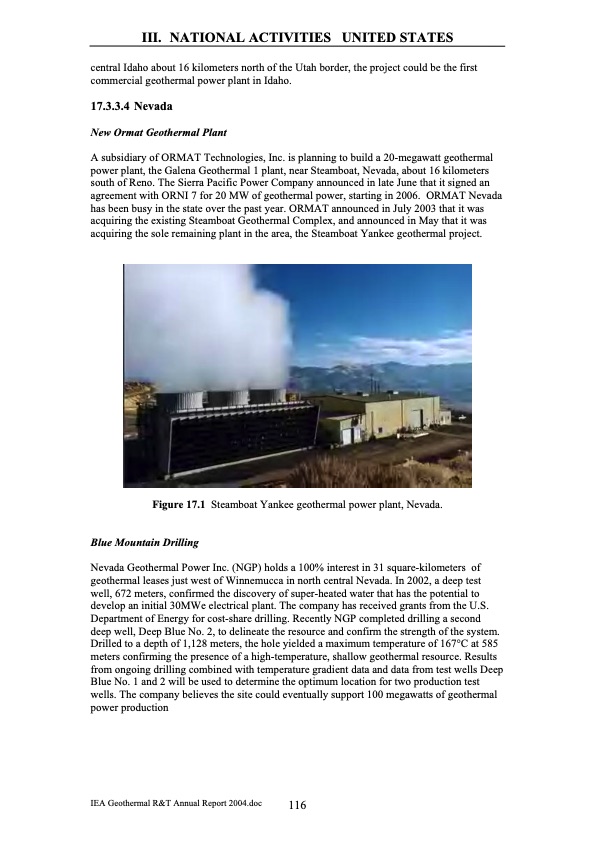

III. NATIONAL ACTIVITIES UNITED STATES central Idaho about 16 kilometers north of the Utah border, the project could be the first commercial geothermal power plant in Idaho. 17.3.3.4 Nevada New Ormat Geothermal Plant A subsidiary of ORMAT Technologies, Inc. is planning to build a 20-megawatt geothermal power plant, the Galena Geothermal 1 plant, near Steamboat, Nevada, about 16 kilometers south of Reno. The Sierra Pacific Power Company announced in late June that it signed an agreement with ORNI 7 for 20 MW of geothermal power, starting in 2006. ORMAT Nevada has been busy in the state over the past year. ORMAT announced in July 2003 that it was acquiring the existing Steamboat Geothermal Complex, and announced in May that it was acquiring the sole remaining plant in the area, the Steamboat Yankee geothermal project. Figure 17.1 Steamboat Yankee geothermal power plant, Nevada. Blue Mountain Drilling Nevada Geothermal Power Inc. (NGP) holds a 100% interest in 31 square-kilometers of geothermal leases just west of Winnemucca in north central Nevada. In 2002, a deep test well, 672 meters, confirmed the discovery of super-heated water that has the potential to develop an initial 30MWe electrical plant. The company has received grants from the U.S. Department of Energy for cost-share drilling. Recently NGP completed drilling a second deep well, Deep Blue No. 2, to delineate the resource and confirm the strength of the system. Drilled to a depth of 1,128 meters, the hole yielded a maximum temperature of 167°C at 585 meters confirming the presence of a high-temperature, shallow geothermal resource. Results from ongoing drilling combined with temperature gradient data and data from test wells Deep Blue No. 1 and 2 will be used to determine the optimum location for two production test wells. The company believes the site could eventually support 100 megawatts of geothermal power production IEA Geothermal R&T Annual Report 2004.doc 116PDF Image | Geothermal Energy Annual Report 2004
