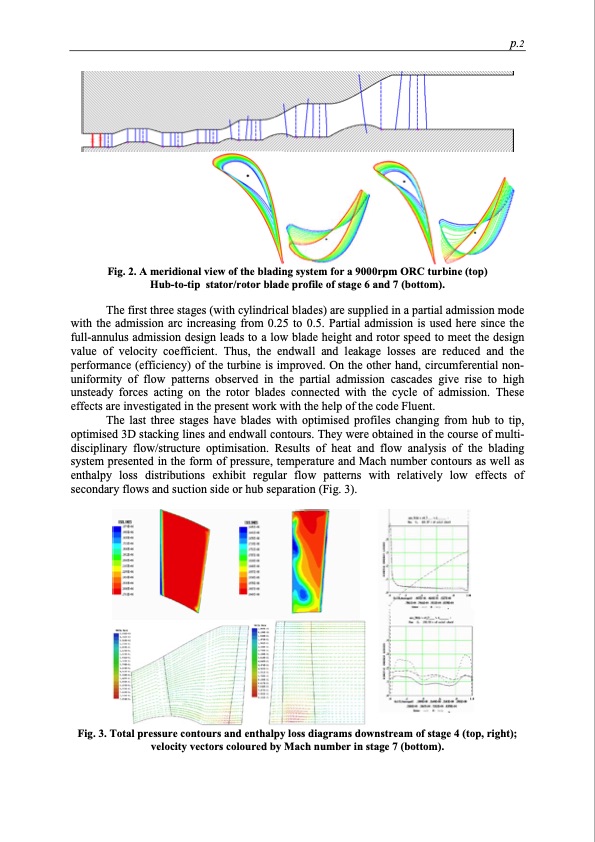

Fig. 2. A meridional view of the blading system for a 9000rpm ORC turbine (top) Hub-to-tip stator/rotor blade profile of stage 6 and 7 (bottom). The first three stages (with cylindrical blades) are supplied in a partial admission mode with the admission arc increasing from 0.25 to 0.5. Partial admission is used here since the full-annulus admission design leads to a low blade height and rotor speed to meet the design value of velocity coefficient. Thus, the endwall and leakage losses are reduced and the performance (efficiency) of the turbine is improved. On the other hand, circumferential non- uniformity of flow patterns observed in the partial admission cascades give rise to high unsteady forces acting on the rotor blades connected with the cycle of admission. These effects are investigated in the present work with the help of the code Fluent. The last three stages have blades with optimised profiles changing from hub to tip, optimised 3D stacking lines and endwall contours. They were obtained in the course of multi- disciplinary flow/structure optimisation. Results of heat and flow analysis of the blading system presented in the form of pressure, temperature and Mach number contours as well as enthalpy loss distributions exhibit regular flow patterns with relatively low effects of secondary flows and suction side or hub separation (Fig. 3). Fig. 3. Total pressure contours and enthalpy loss diagrams downstream of stage 4 (top, right); velocity vectors coloured by Mach number in stage 7 (bottom). p.2PDF Image | DESCRIPTION OF ORC MICROTURBINE FLOW
