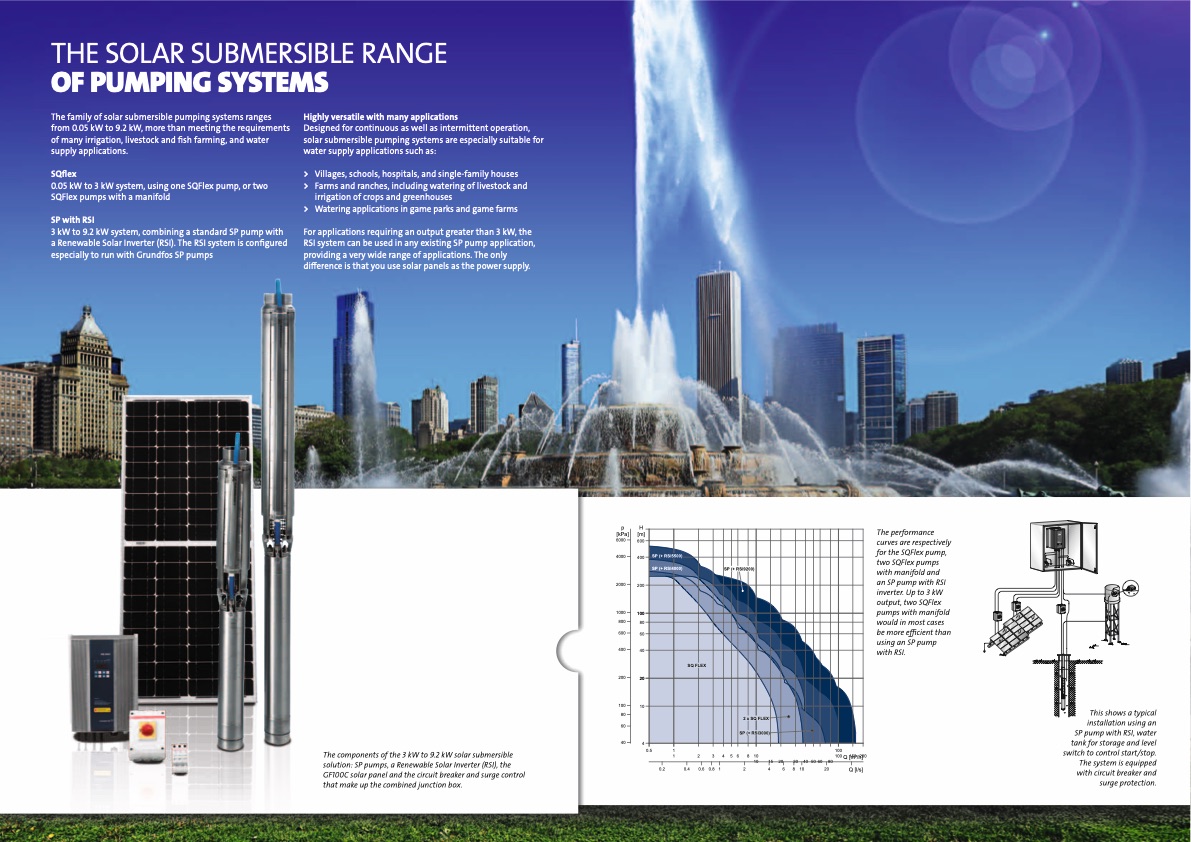

the solar submersible range of pumping systems The family of solar submersible pumping systems ranges from 0.05 kW to 9.2 kW, more than meeting the requirements of many irrigation, livestock and fish farming, and water supply applications. SQflex 0.05 kW to 3 kW system, using one SQFlex pump, or two SQFlex pumps with a manifold Sp with rSi 3 kW to 9.2 kW system, combining a standard SP pump with a Renewable Solar Inverter (RSI). The RSI system is configured especially to run with Grundfos SP pumps Highly versatile with many applications Designed for continuous as well as intermittent operation, solar submersible pumping systems are especially suitable for water supply applications such as: > Villages, schools, hospitals, and single-family houses > Farms and ranches, including watering of livestock and irrigation of crops and greenhouses > Watering applications in game parks and game farms For applications requiring an output greater than 3 kW, the RSI system can be used in any existing SP pump application, providing a very wide range of applications. The only difference is that you use solar panels as the power supply. The components of the 3 kW to 9.2 kW solar submersible solution: SP pumps, a Renewable Solar Inverter (RSI), the GF100C solar panel and the circuit breaker and surge control that make up the combined junction box. pH [kPa] [m] 6000 600 4000 400 2000 200 1000 100 800 80 600 60 400 40 200 20 100 10 80 60 40 4 The performance curves are respectively for the SQFlex pump, two SQFlex pumps with manifold and an SP pump with RSI inverter. Up to 3 kW output, two SQFlex pumps with manifold would in most cases be more efficient than using an SP pump with RSI. SP (+ RSI5 500) SP (+ RSI4 000) SP (+ RSI9200) SQ FLEX 2 x SQ FLEX SP (+ RSI3000) 0.5 1 1 0.2 2 3456810 10 15 20 4 6 30 8 10 20 100 100150200 Q [m3/h] Q [l/s] This shows a typical installation using an SP pump with RSI, water tank for storage and level switch to control start/stop. The system is equipped with circuit breaker and surge protection. 40 50 60 80 0.4 0.6 0.8 1 2 RSI 3000 Distributed by RUN STOP FAULT NORMAL EXSTTEORPNAL STROUPN MDOADTEA ENPRTEORG EOWFnxnoscAlrueyirsnRetsodipNvobrEeoeILrNpisEnienCpGrsuTvwt:RtiacivIlrCelioandSltgtiHaboagOynneCqodwKungailHlyrl.iAofdiuZeaAndmdRsaiDntgageff(t.heearethqu).ipment. DANGEROUS VOLTAGES AND CURRENTSPDF Image | water supply using clean energy grundfos solar submersible
