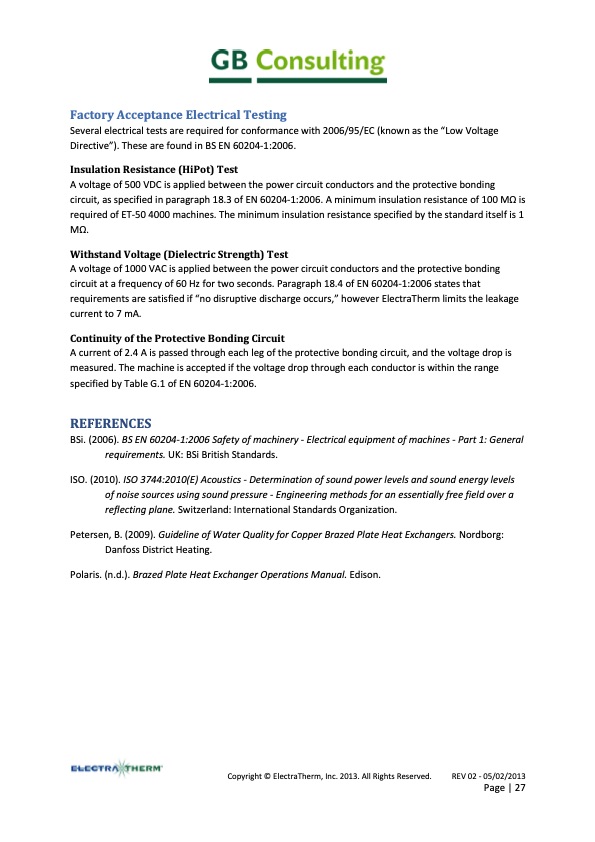

Factory Acceptance Electrical Testing Several electrical tests are required for conformance with 2006/95/EC (known as the “Low Voltage Directive”). These are found in BS EN 60204-1:2006. Insulation Resistance (HiPot) Test A voltage of 500 VDC is applied between the power circuit conductors and the protective bonding circuit, as specified in paragraph 18.3 of EN 60204-1:2006. A minimum insulation resistance of 100 MΩ is required of ET-50 4000 machines. The minimum insulation resistance specified by the standard itself is 1 MΩ. Withstand Voltage (Dielectric Strength) Test A voltage of 1000 VAC is applied between the power circuit conductors and the protective bonding circuit at a frequency of 60 Hz for two seconds. Paragraph 18.4 of EN 60204-1:2006 states that requirements are satisfied if “no disruptive discharge occurs,” however ElectraTherm limits the leakage current to 7 mA. Continuity of the Protective Bonding Circuit A current of 2.4 A is passed through each leg of the protective bonding circuit, and the voltage drop is measured. The machine is accepted if the voltage drop through each conductor is within the range specified by Table G.1 of EN 60204-1:2006. REFERENCES BSi. (2006). BS EN 60204-1:2006 Safety of machinery - Electrical equipment of machines - Part 1: General requirements. UK: BSi British Standards. ISO. (2010). ISO 3744:2010(E) Acoustics - Determination of sound power levels and sound energy levels of noise sources using sound pressure - Engineering methods for an essentially free field over a reflecting plane. Switzerland: International Standards Organization. Petersen, B. (2009). Guideline of Water Quality for Copper Brazed Plate Heat Exchangers. Nordborg: Danfoss District Heating. Polaris. (n.d.). Brazed Plate Heat Exchanger Operations Manual. Edison. Copyright © ElectraTherm, Inc. 2013. All Rights Reserved. REV 02 - 05/02/2013 Page | 27PDF Image | Waste Heat to Power System Product Data and Specification Guide
