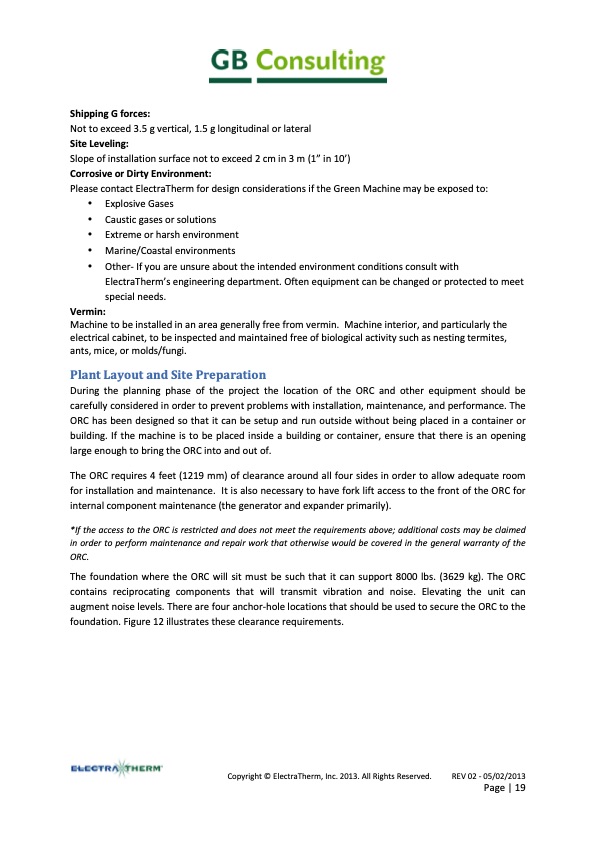

Shipping G forces: Not to exceed 3.5 g vertical, 1.5 g longitudinal or lateral Site Leveling: Slope of installation surface not to exceed 2 cm in 3 m (1” in 10’) Corrosive or Dirty Environment: Please contact ElectraTherm for design considerations if the Green Machine may be exposed to: • Explosive Gases • Caustic gases or solutions • Extreme or harsh environment • Marine/Coastal environments • Other- If you are unsure about the intended environment conditions consult with ElectraTherm’s engineering department. Often equipment can be changed or protected to meet special needs. Vermin: Machine to be installed in an area generally free from vermin. Machine interior, and particularly the electrical cabinet, to be inspected and maintained free of biological activity such as nesting termites, ants, mice, or molds/fungi. Plant Layout and Site Preparation During the planning phase of the project the location of the ORC and other equipment should be carefully considered in order to prevent problems with installation, maintenance, and performance. The ORC has been designed so that it can be setup and run outside without being placed in a container or building. If the machine is to be placed inside a building or container, ensure that there is an opening large enough to bring the ORC into and out of. The ORC requires 4 feet (1219 mm) of clearance around all four sides in order to allow adequate room for installation and maintenance. It is also necessary to have fork lift access to the front of the ORC for internal component maintenance (the generator and expander primarily). *If the access to the ORC is restricted and does not meet the requirements above; additional costs may be claimed in order to perform maintenance and repair work that otherwise would be covered in the general warranty of the ORC. The foundation where the ORC will sit must be such that it can support 8000 lbs. (3629 kg). The ORC contains reciprocating components that will transmit vibration and noise. Elevating the unit can augment noise levels. There are four anchor-hole locations that should be used to secure the ORC to the foundation. Figure 12 illustrates these clearance requirements. Copyright © ElectraTherm, Inc. 2013. All Rights Reserved. REV 02 - 05/02/2013 Page | 19PDF Image | Waste Heat to Power System Product Data and Specification Guide
