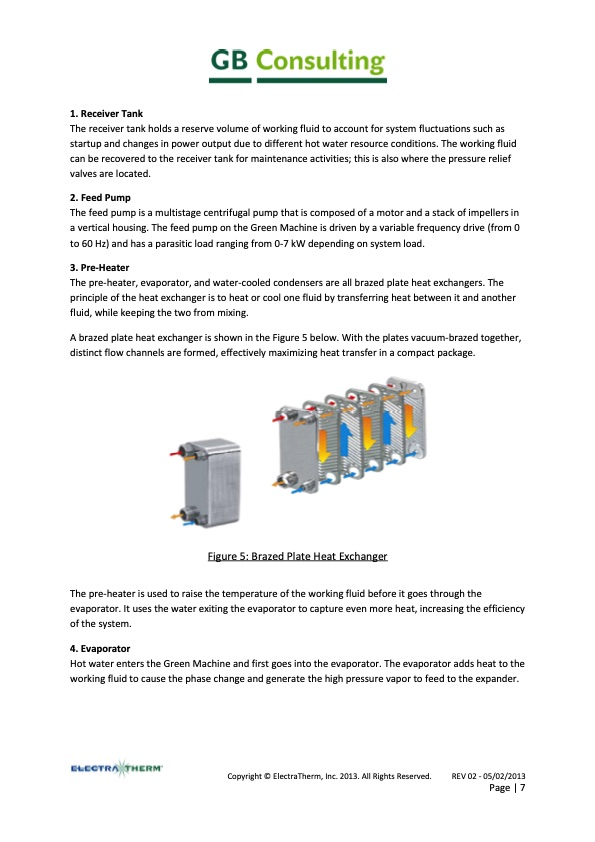

1. Receiver Tank The receiver tank holds a reserve volume of working fluid to account for system fluctuations such as startup and changes in power output due to different hot water resource conditions. The working fluid can be recovered to the receiver tank for maintenance activities; this is also where the pressure relief valves are located. 2. Feed Pump The feed pump is a multistage centrifugal pump that is composed of a motor and a stack of impellers in a vertical housing. The feed pump on the Green Machine is driven by a variable frequency drive (from 0 to 60 Hz) and has a parasitic load ranging from 0-7 kW depending on system load. 3. Pre-Heater The pre-heater, evaporator, and water-cooled condensers are all brazed plate heat exchangers. The principle of the heat exchanger is to heat or cool one fluid by transferring heat between it and another fluid, while keeping the two from mixing. A brazed plate heat exchanger is shown in the Figure 5 below. With the plates vacuum-brazed together, distinct flow channels are formed, effectively maximizing heat transfer in a compact package. Figure 5: Brazed Plate Heat Exchanger The pre-heater is used to raise the temperature of the working fluid before it goes through the evaporator. It uses the water exiting the evaporator to capture even more heat, increasing the efficiency of the system. 4. Evaporator Hot water enters the Green Machine and first goes into the evaporator. The evaporator adds heat to the working fluid to cause the phase change and generate the high pressure vapor to feed to the expander. Copyright © ElectraTherm, Inc. 2013. All Rights Reserved. REV 02 - 05/02/2013 Page | 7PDF Image | Waste Heat to Power System Product Data and Specification Guide
