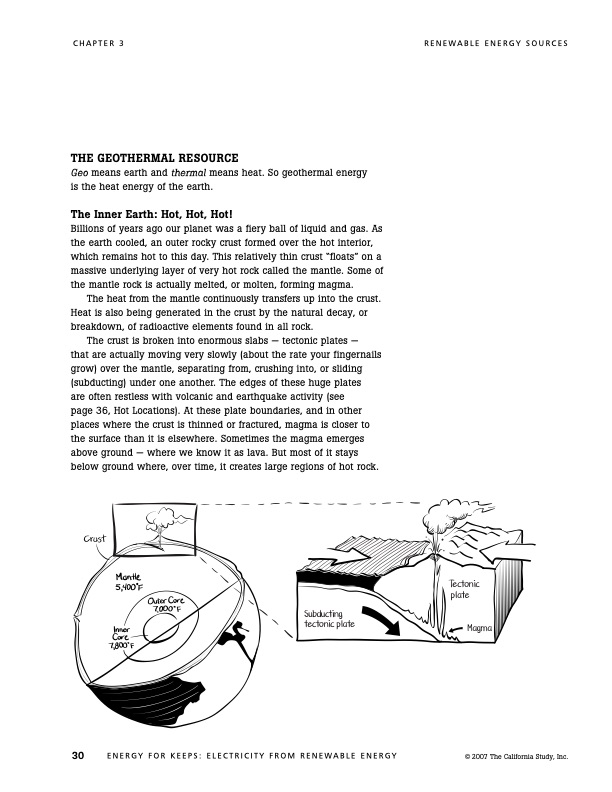

CHAPTER 3 RENEWABLE ENERGY SOURCES THE GEOTHERMAL RESOURCE Geo means earth and thermal means heat. So geothermal energy is the heat energy of the earth. The Inner Earth: Hot, Hot, Hot! Billions of years ago our planet was a fiery ball of liquid and gas. As the earth cooled, an outer rocky crust formed over the hot interior, which remains hot to this day. This relatively thin crust “floats” on a massive underlying layer of very hot rock called the mantle. Some of the mantle rock is actually melted, or molten, forming magma. The heat from the mantle continuously transfers up into the crust. Heat is also being generated in the crust by the natural decay, or breakdown, of radioactive elements found in all rock. The crust is broken into enormous slabs — tectonic plates — that are actually moving very slowly (about the rate your fingernails grow) over the mantle, separating from, crushing into, or sliding (subducting) under one another. The edges of these huge plates are often restless with volcanic and earthquake activity (see page 36, Hot Locations). At these plate boundaries, and in other places where the crust is thinned or fractured, magma is closer to the surface than it is elsewhere. Sometimes the magma emerges above ground — where we know it as lava. But most of it stays below ground where, over time, it creates large regions of hot rock. Subducting tectonic plate Tectonic plate Magma 30 ENERGY FOR KEEPS: ELECTRICITY FROM RENEWABLE ENERGY © 2007 The California Study, Inc.PDF Image | Renewable Energy Source: GEOTHERMAL
