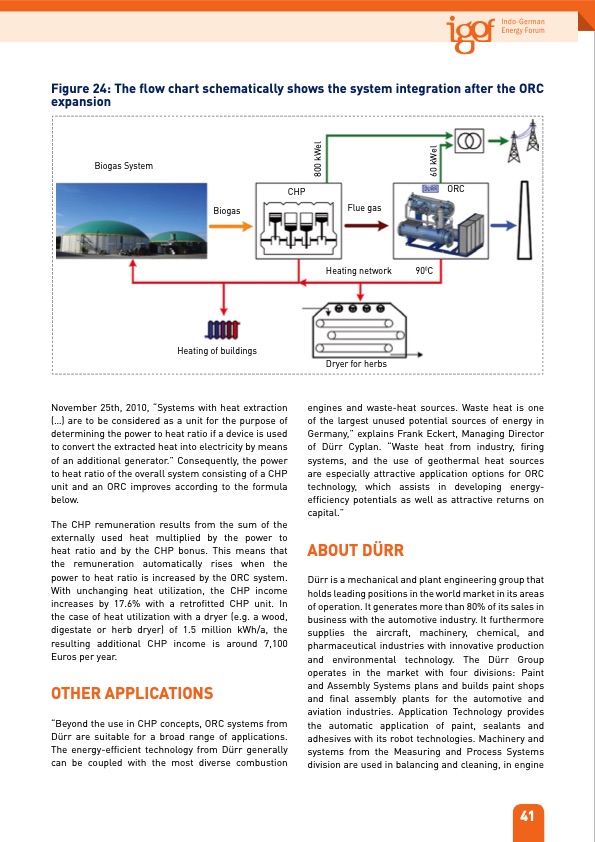

figure 24: the flow chart schematically shows the system integration after the orc expansion Biogas System Biogas Heating of buildings Heating network 900C Dryer for herbs CHP Flue gas ORC November 25th, 2010, “Systems with heat extraction (...) are to be considered as a unit for the purpose of determining the power to heat ratio if a device is used to convert the extracted heat into electricity by means of an additional generator.” Consequently, the power to heat ratio of the overall system consisting of a CHP unit and an ORC improves according to the formula below. The CHP remuneration results from the sum of the externally used heat multiplied by the power to heat ratio and by the CHP bonus. This means that the remuneration automatically rises when the power to heat ratio is increased by the ORC system. With unchanging heat utilization, the CHP income increases by 17.6% with a retrofitted CHP unit. In the case of heat utilization with a dryer (e.g. a wood, digestate or herb dryer) of 1.5 million kWh/a, the resulting additional CHP income is around 7,100 Euros per year. othEr aPPlications “Beyond the use in CHP concepts, ORC systems from Dürr are suitable for a broad range of applications. The energy-efficient technology from Dürr generally can be coupled with the most diverse combustion engines and waste-heat sources. Waste heat is one of the largest unused potential sources of energy in Germany,” explains Frank Eckert, Managing Director of Dürr Cyplan. “Waste heat from industry, firing systems, and the use of geothermal heat sources are especially attractive application options for ORC technology, which assists in developing energy- efficiency potentials as well as attractive returns on capital.” aBout DÜrr Dürr is a mechanical and plant engineering group that holds leading positions in the world market in its areas of operation. It generates more than 80% of its sales in business with the automotive industry. It furthermore supplies the aircraft, machinery, chemical, and pharmaceutical industries with innovative production and environmental technology. The Dürr Group operates in the market with four divisions: Paint and Assembly Systems plans and builds paint shops and final assembly plants for the automotive and aviation industries. Application Technology provides the automatic application of paint, sealants and adhesives with its robot technologies. Machinery and systems from the Measuring and Process Systems division are used in balancing and cleaning, in engine 41 800 kWel 60 kWelPDF Image | ORGANIC RANKINE CYCLE TECHNOLOGY IN INDIA
