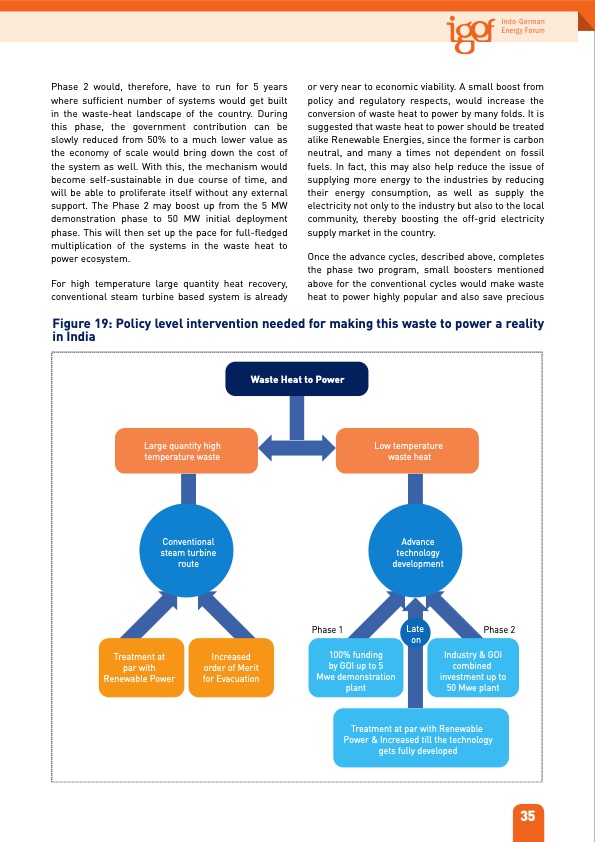

Phase 2 would, therefore, have to run for 5 years where sufficient number of systems would get built in the waste-heat landscape of the country. During this phase, the government contribution can be slowly reduced from 50% to a much lower value as the economy of scale would bring down the cost of the system as well. With this, the mechanism would become self-sustainable in due course of time, and will be able to proliferate itself without any external support. The Phase 2 may boost up from the 5 MW demonstration phase to 50 MW initial deployment phase. This will then set up the pace for full-fledged multiplication of the systems in the waste heat to power ecosystem. For high temperature large quantity heat recovery, conventional steam turbine based system is already or very near to economic viability. A small boost from policy and regulatory respects, would increase the conversion of waste heat to power by many folds. It is suggested that waste heat to power should be treated alike Renewable Energies, since the former is carbon neutral, and many a times not dependent on fossil fuels. In fact, this may also help reduce the issue of supplying more energy to the industries by reducing their energy consumption, as well as supply the electricity not only to the industry but also to the local community, thereby boosting the off-grid electricity supply market in the country. Once the advance cycles, described above, completes the phase two program, small boosters mentioned above for the conventional cycles would make waste heat to power highly popular and also save precious figure 19: Policy level intervention needed for making this waste to power a reality in india Large quantity high temperature waste Conventional steam turbine route Low temperature waste heat Advance technology development Late on Waste Heat to Power Treatment at par with Renewable Power Increased order of Merit for Evacuation Phase 1 100% funding by GOI up to 5 Mwe demonstration plant Phase 2 Industry & GOI combined investment up to 50 Mwe plant Treatment at par with Renewable Power & Increased till the technology gets fully developed 35PDF Image | ORGANIC RANKINE CYCLE TECHNOLOGY IN INDIA
