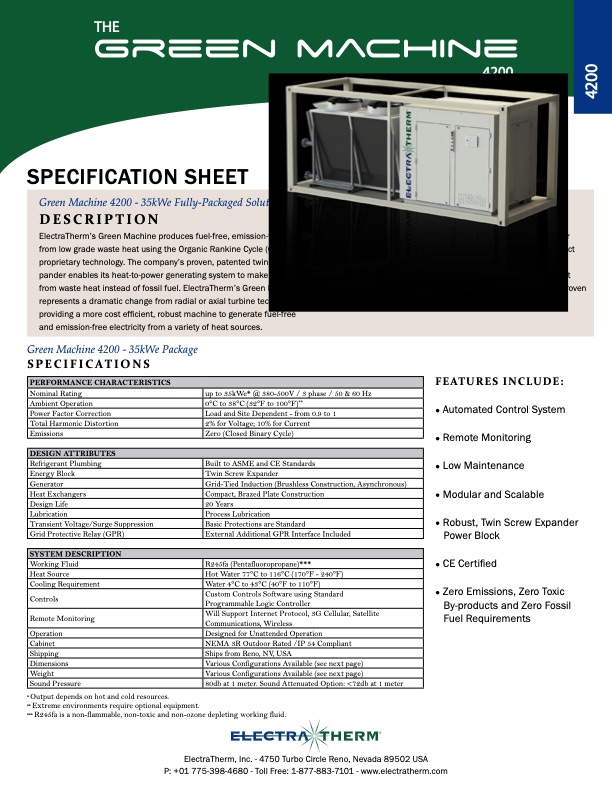

THE 4200 SPECIFICATION SHEET Green Machine 4200 - 35kWe Fully-Packaged Solution DESCRIPTION ElectraTherm’s Green Machine produces fuel-free, emission-free power from low grade waste heat using the Organic Rankine Cycle (ORC) and proprietary technology. The company’s proven, patented twin screw ex- pander enables its heat-to-power generating system to make electricity from waste heat instead of fossil fuel. ElectraTherm’s Green Machine represents a dramatic change from radial or axial turbine technologies, providing a more cost efficient, robust machine to generate fuel-free and emission-free electricity from a variety of heat sources. ElectraTherm’s twin screw expander offers distinct advantages for small-scale ORCs. These advantages include a simple and compact design, low speed operation with the ability to handle heat input variations and dual phase flow of the working fluid, significant part load capability, no gear box or oil pump, attractive payback and proven technology. Green Machine 4200 - 35kWe Package SPECIFICATIONS PERFORMANCE CHARACTERISTICS Nominal Rating Ambient Operation Power Factor Correction Total Harmonic Distortion Emissions DESIGN ATTRIBUTES Refrigerant Plumbing Energy Block Generator Heat Exchangers Design Life Lubrication Transient Voltage/Surge Suppression Grid Protective Relay (GPR) SYSTEM DESCRIPTION Working Fluid Heat Source Cooling Requirement Controls Remote Monitoring Operation Cabinet Shipping Dimensions Weight Sound Pressure up to 35kWe* @ 380-500V / 3 phase / 50 & 60 Hz 0°C to 38°C (32°F to 100°F)** Load and Site Dependent - from 0.9 to 1 2% for Voltage; 10% for Current Zero (Closed Binary Cycle) Built to ASME and CE Standards Twin Screw Expander Grid-Tied Induction (Brushless Construction, Asynchronous) Compact, Brazed Plate Construction 20 Years Process Lubrication Basic Protections are Standard External Additional GPR Interface Included R245fa (Pentafluoropropane)*** Hot Water 77°C to 116°C (170°F - 240°F) Water 4°C to 43°C (40°F to 110°F) Custom Controls Software using Standard Programmable Logic Controller Will Support Internet Protocol, 3G Cellular, Satellite Communications, Wireless Designed for Unattended Operation NEMA 3R Outdoor Rated /IP 54 Compliant Ships from Reno, NV, USA Various Configurations Available (see next page) Various Configurations Available (see next page) 80db at 1 meter. Sound Attenuated Option: <72db at 1 meter FEATURES INCLUDE: ● Automated Control System ● Remote Monitoring ● Low Maintenance ● Modular and Scalable ● Robust, Twin Screw Expander Power Block ● CE Certified ● Zero Emissions, Zero Toxic By-products and Zero Fossil Fuel Requirements * Output depends on hot and cold resources. ** Extreme environments require optional equipment. *** R245fa is a non-flammable, non-toxic and non-ozone depleting working fluid. ElectraTherm, Inc. - 4750 Turbo Circle Reno, Nevada 89502 USA P: +01 775-398-4680 - Toll Free: 1-877-883-7101 - www.electratherm.com 4200PDF Image | Green Machine 4200 35kWe Fully-Packaged Solution
