PDF Publication Title:

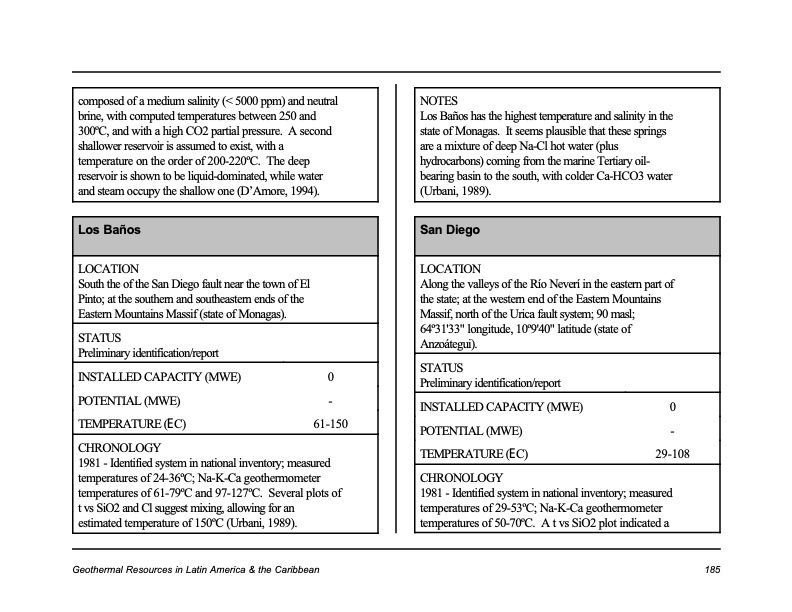

Text from PDF Page: 188
composed of a medium salinity (< 5000 ppm) and neutral brine, with computed temperatures between 250 and 300oC,andwithahighCO2partialpressure. Asecond shallower reservoir is assumed to exist, with a temperatureontheorderof200-220oC. Thedeep reservoir is shown to be liquid-dominated, while water and steam occupy the shallow one (D’Amore, 1994). NOTES Los Baños has the highest temperature and salinity in the stateofMonagas. Itseemsplausiblethatthesesprings are a mixture of deep Na-Cl hot water (plus hydrocarbons) coming from the marine Tertiary oil- bearing basin to the south, with colder Ca-HCO3 water (Urbani, 1989). Los Baños LOCATION South the of the San Diego fault near the town of El Pinto; at the southern and southeastern ends of the Eastern Mountains Massif (state of Monagas). STATUS Preliminary identification/report San Diego LOCATION Along the valleys of the Río Neverí in the eastern part of the state; at the western end of the Eastern Mountains Massif, north of the Urica fault system; 90 masl; 64o31'33" longitude, 10o9'40" latitude (state of Anzoátegui). STATUS Preliminary identification/report INSTALLED CAPACITY (MWE) 0 POTENTIAL (MWE) - INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) 0 - 29-108 TEMPERATURE (EC) 61-150 CHRONOLOGY 1981 - Identified system in national inventory; measured temperatures of 24-36oC; Na-K-Ca geothermometer temperatures of 61-79oC and 97-127oC. Several plots of t vs SiO2 and Cl suggest mixing, allowing for an estimated temperature of 150oC (Urbani, 1989). CHRONOLOGY 1981 - Identified system in national inventory; measured temperatures of 29-53oC; Na-K-Ca geothermometer temperaturesof50-70oC. AtvsSiO2plotindicateda Geothermal Resources in Latin America & the Caribbean 185PDF Image | Geothermal Resources in the Caribbean and Latin America
PDF Search Title:
Geothermal Resources in the Caribbean and Latin AmericaOriginal File Name Searched:
georeslac.pdfDIY PDF Search: Google It | Yahoo | Bing
