PDF Publication Title:
Text from PDF Page: 130

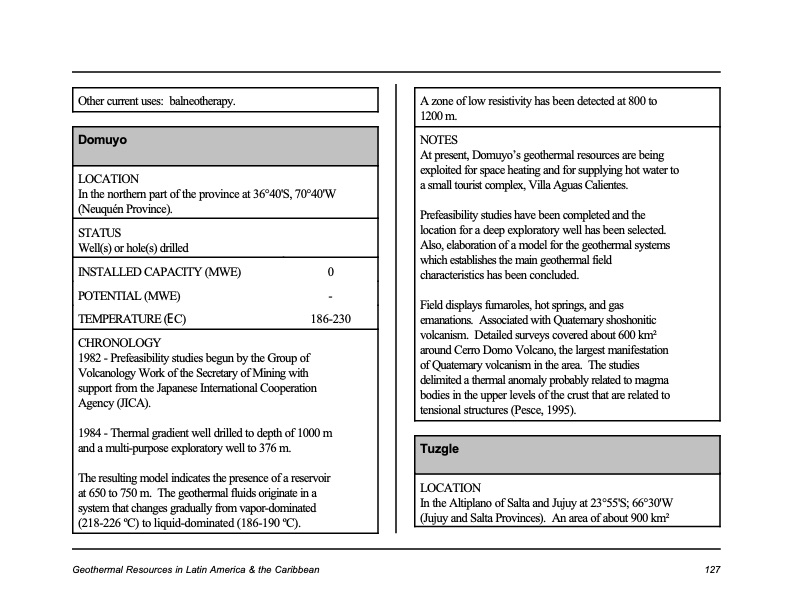

A zone of low resistivity has been detected at 800 to 1200 m. NOTES At present, Domuyo’s geothermal resources are being exploited for space heating and for supplying hot water to a small tourist complex, Villa Aguas Calientes. Prefeasibility studies have been completed and the location for a deep exploratory well has been selected. Also, elaboration of a model for the geothermal systems which establishes the main geothermal field characteristics has been concluded. Field displays fumaroles, hot springs, and gas emanations. AssociatedwithQuatemaryshoshonitic volcanism. Detailedsurveyscoveredabout600km2 around Cerro Domo Volcano, the largest manifestation ofQuatemaryvolcanisminthearea. Thestudies delimited a thermal anomaly probably related to magma bodies in the upper levels of the crust that are related to tensional structures (Pesce, 1995). Othercurrentuses: balneotherapy. Domuyo LOCATION In the northern part of the province at 36°40'S, 70°40'W (Neuquén Province). STATUS Well(s) or hole(s) drilled INSTALLED CAPACITY (MWE) 0 POTENTIAL (MWE) - TEMPERATURE (EC) 186-230 CHRONOLOGY 1982 - Prefeasibility studies begun by the Group of Volcanology Work of the Secretary of Mining with support from the Japanese International Cooperation Agency (JICA). 1984 - Thermal gradient well drilled to depth of 1000 m and a multi-purpose exploratory well to 376 m. The resulting model indicates the presence of a reservoir at650to750m. Thegeothermalfluidsoriginateina system that changes gradually from vapor-dominated (218-226 oC) to liquid-dominated (186-190 oC). Tuzgle LOCATION In the Altiplano of Salta and Jujuy at 23°55'S; 66°30'W (JujuyandSaltaProvinces). Anareaofabout900km2 Geothermal Resources in Latin America & the Caribbean 127PDF Image | Geothermal Resources in the Caribbean and Latin America
PDF Search Title:
Geothermal Resources in the Caribbean and Latin AmericaOriginal File Name Searched:
georeslac.pdfDIY PDF Search: Google It | Yahoo | Bing
