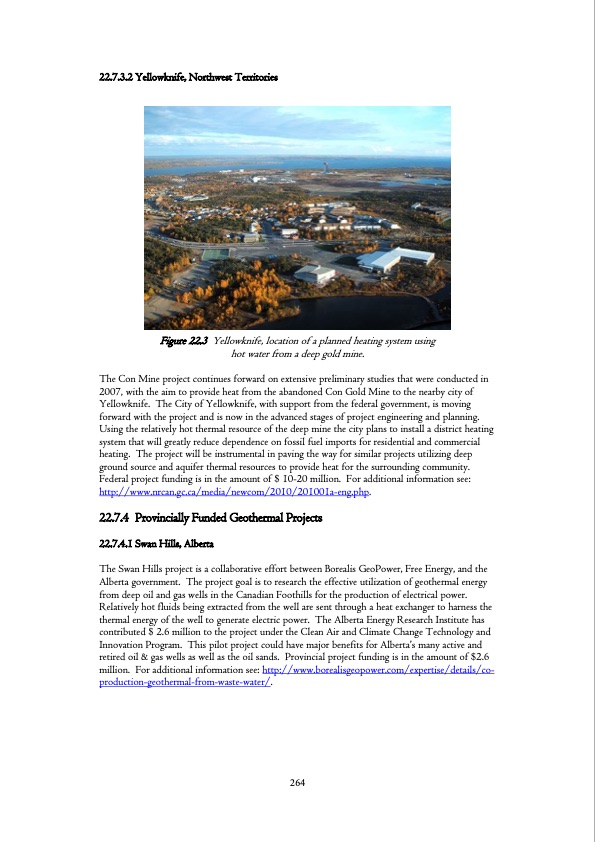

22.7.3.2 Yellowknife, Northwest Territories Figure 22.3 Yellowknife, location of a planned heating system using hot water from a deep gold mine. The Con Mine project continues forward on extensive preliminary studies that were conducted in 2007, with the aim to provide heat from the abandoned Con Gold Mine to the nearby city of Yellowknife. The City of Yellowknife, with support from the federal government, is moving forward with the project and is now in the advanced stages of project engineering and planning. Using the relatively hot thermal resource of the deep mine the city plans to install a district heating system that will greatly reduce dependence on fossil fuel imports for residential and commercial heating. The project will be instrumental in paving the way for similar projects utilizing deep ground source and aquifer thermal resources to provide heat for the surrounding community. Federal project funding is in the amount of $ 10-20 million. For additional information see: http://www.nrcan.gc.ca/media/newcom/2010/201001a-eng.php. 22.7.4 Provincially Funded Geothermal Projects 22.7.4.1 Swan Hills, Alberta The Swan Hills project is a collaborative effort between Borealis GeoPower, Free Energy, and the Alberta government. The project goal is to research the effective utilization of geothermal energy from deep oil and gas wells in the Canadian Foothills for the production of electrical power. Relatively hot fluids being extracted from the well are sent through a heat exchanger to harness the thermal energy of the well to generate electric power. The Alberta Energy Research Institute has contributed $ 2.6 million to the project under the Clean Air and Climate Change Technology and Innovation Program. This pilot project could have major benefits for Alberta‘s many active and retired oil & gas wells as well as the oil sands. Provincial project funding is in the amount of $2.6 million. For additional information see: http://www.borealisgeopower.com/expertise/details/co- production-geothermal-from-waste-water/. 264PDF Image | Geothermal Research and Tech IEA
