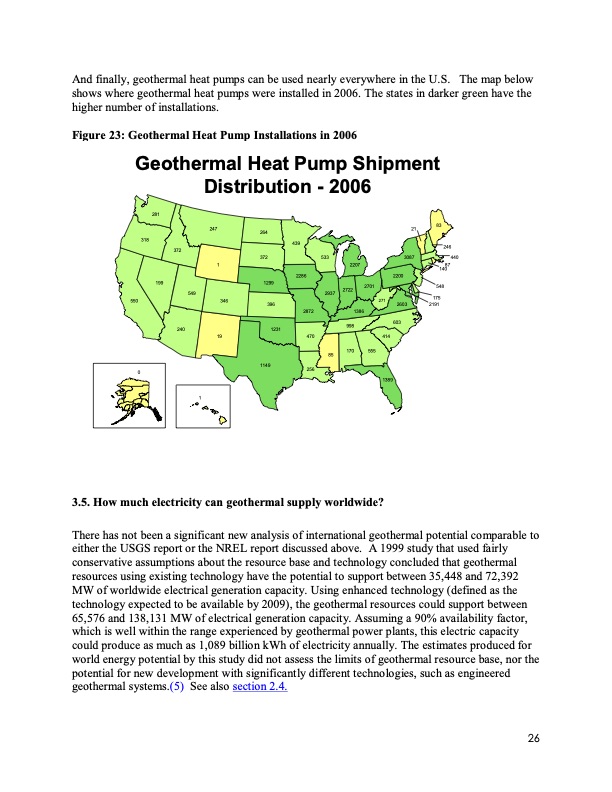

And finally, geothermal heat pumps can be used nearly everywhere in the U.S. The map below shows where geothermal heat pumps were installed in 2006. The states in darker green have the higher number of installations. Figure 23: Geothermal Heat Pump Installations in 2006 Geothermal Heat Pump Shipment Distribution - 2006 550 346 271 414 1389 2603 603 0 85 256 281 318 372 199 247 1 19 21 3087 83 240 549 2701 555 1 3.5. How much electricity can geothermal supply worldwide? 264 439 246 440 372 1299 396 1231 1149 2286 2872 470 533 2937 2207 2722 1386 998 170 2200 87 140 548 175 2191 There has not been a significant new analysis of international geothermal potential comparable to either the USGS report or the NREL report discussed above. A 1999 study that used fairly conservative assumptions about the resource base and technology concluded that geothermal resources using existing technology have the potential to support between 35,448 and 72,392 MW of worldwide electrical generation capacity. Using enhanced technology (defined as the technology expected to be available by 2009), the geothermal resources could support between 65,576 and 138,131 MW of electrical generation capacity. Assuming a 90% availability factor, which is well within the range experienced by geothermal power plants, this electric capacity could produce as much as 1,089 billion kWh of electricity annually. The estimates produced for world energy potential by this study did not assess the limits of geothermal resource base, nor the potential for new development with significantly different technologies, such as engineered geothermal systems.(5) See also section 2.4. 26PDF Image | Geothermal 101
