Text from PDF Page: 304

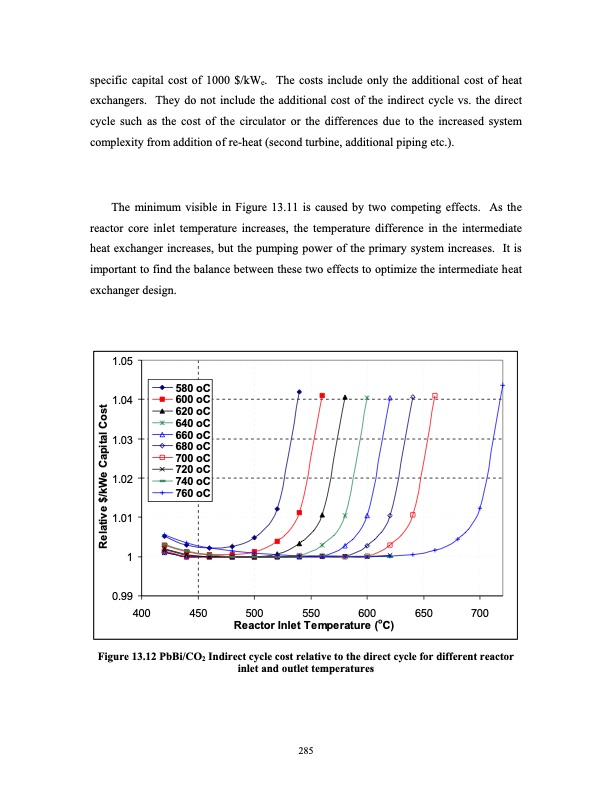

specific capital cost of 1000 $/kWBeB. The costs include only the additional cost of heat exchangers. They do not include the additional cost of the indirect cycle vs. the direct cycle such as the cost of the circulator or the differences due to the increased system complexity from addition of re-heat (second turbine, additional piping etc.). The minimum visible in Figure 13.11 is caused by two competing effects. As the reactor core inlet temperature increases, the temperature difference in the intermediate heat exchanger increases, but the pumping power of the primary system increases. It is important to find the balance between these two effects to optimize the intermediate heat exchanger design. 1.05 1.04 1.03 1.02 1.01 1 0.99 400 450 500 550 600 650 700 580 oC 600 oC 620 oC 640 oC 660 oC 680 oC 700 oC 720 oC 740 oC 760 oC Reactor Inlet Temperature (oC) Figure 13.12 PbBi/COB2B Indirect cycle cost relative to the direct cycle for different reactor inlet and outlet temperatures 285 Relative $/kWe Capital CostPDF Image | Advanced Nuclear Power Technology Program A Supercritical Carbon Dioxide Cycle for Next Generation Nuclear Reactors
