Text from PDF Page: 270

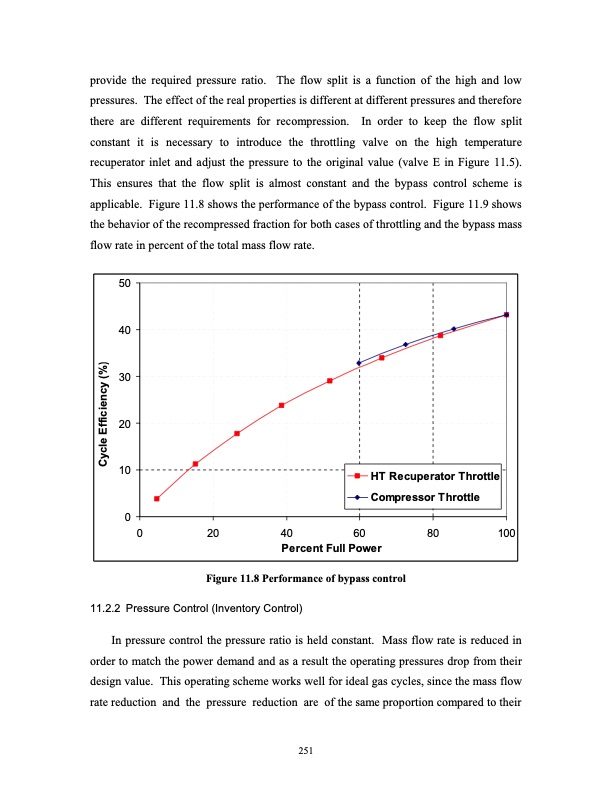

provide the required pressure ratio. The flow split is a function of the high and low pressures. The effect of the real properties is different at different pressures and therefore there are different requirements for recompression. In order to keep the flow split constant it is necessary to introduce the throttling valve on the high temperature recuperator inlet and adjust the pressure to the original value (valve E in Figure 11.5). This ensures that the flow split is almost constant and the bypass control scheme is applicable. Figure 11.8 shows the performance of the bypass control. Figure 11.9 shows the behavior of the recompressed fraction for both cases of throttling and the bypass mass flow rate in percent of the total mass flow rate. 50 40 30 20 10 0 HT Recuperator Throttle Compressor Throttle 0 20 40 60 80 100 Percent Full Power Figure 11.8 Performance of bypass control 11.2.2 Pressure Control (Inventory Control) In pressure control the pressure ratio is held constant. Mass flow rate is reduced in order to match the power demand and as a result the operating pressures drop from their design value. This operating scheme works well for ideal gas cycles, since the mass flow rate reduction and the pressure reduction are of the same proportion compared to their 251 Cycle Efficiency (%)PDF Image | Advanced Nuclear Power Technology Program A Supercritical Carbon Dioxide Cycle for Next Generation Nuclear Reactors
