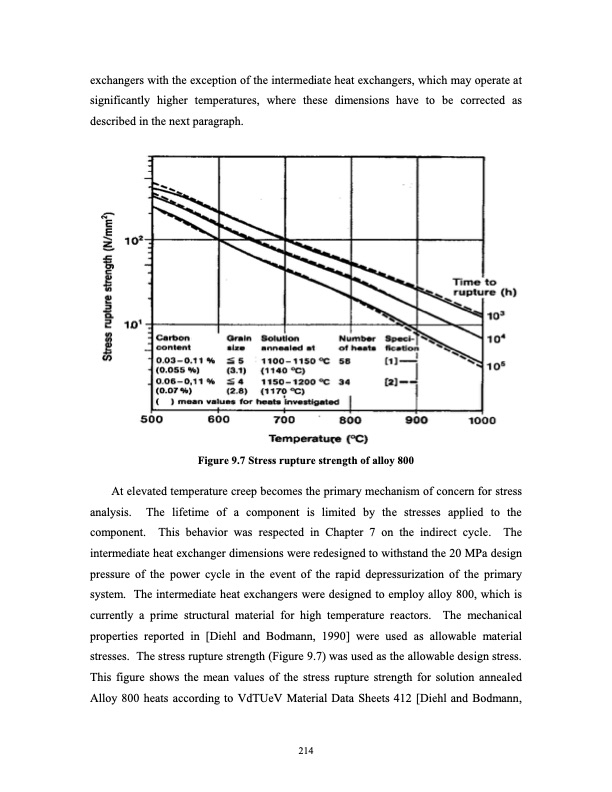

exchangers with the exception of the intermediate heat exchangers, which may operate at significantly higher temperatures, where these dimensions have to be corrected as described in the next paragraph. Figure 9.7 Stress rupture strength of alloy 800 At elevated temperature creep becomes the primary mechanism of concern for stress analysis. The lifetime of a component is limited by the stresses applied to the component. This behavior was respected in Chapter 7 on the indirect cycle. The intermediate heat exchanger dimensions were redesigned to withstand the 20 MPa design pressure of the power cycle in the event of the rapid depressurization of the primary system. The intermediate heat exchangers were designed to employ alloy 800, which is currently a prime structural material for high temperature reactors. The mechanical properties reported in [Diehl and Bodmann, 1990] were used as allowable material stresses. The stress rupture strength (Figure 9.7) was used as the allowable design stress. This figure shows the mean values of the stress rupture strength for solution annealed Alloy 800 heats according to VdTUeV Material Data Sheets 412 [Diehl and Bodmann, 214PDF Image | Advanced Nuclear Power Technology Program A Supercritical Carbon Dioxide Cycle for Next Generation Nuclear Reactors
