PDF Publication Title:
Text from PDF Page: 003

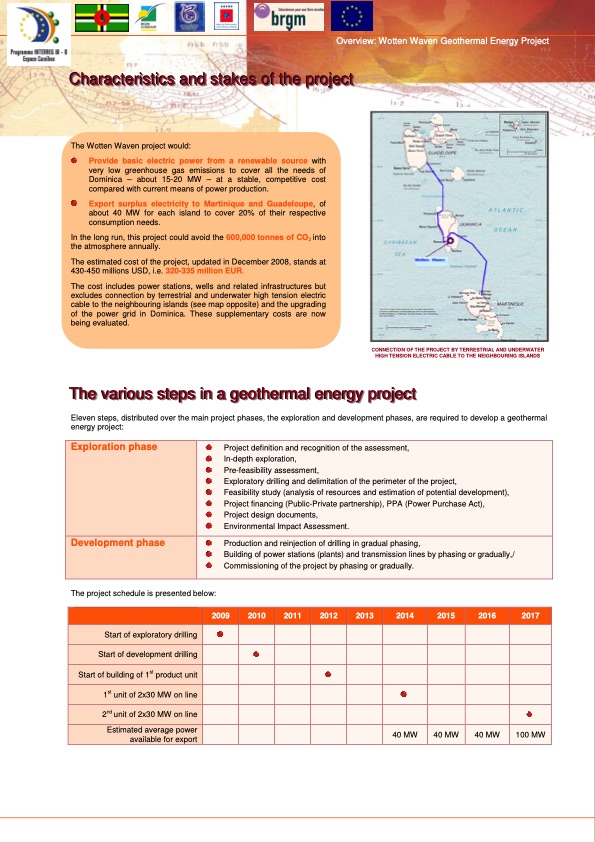

Characteristics and stakes of the project Characteristics and stakes of the project The Wotten Waven project would: Provide basic electric power from a renewable source with very low greenhouse gas emissions to cover all the needs of Dominica – about 15-20 MW – at a stable, competitive cost compared with current means of power production. Export surplus electricity to Martinique and Guadeloupe, of about 40 MW for each island to cover 20% of their respective consumption needs. In the long run, this project could avoid the 600,000 tonnes of CO2 into the atmosphere annually. The estimated cost of the project, updated in December 2008, stands at 430-450 millions USD, i.e. 320-335 million EUR. The cost includes power stations, wells and related infrastructures but excludes connection by terrestrial and underwater high tension electric cable to the neighbouring islands (see map opposite) and the upgrading of the power grid in Dominica. These supplementary costs are now being evaluated. Overview: Wotten Waven Geothermal Energy Project The various steps in a geothermal energy project The various steps in a geothermal energy project Eleven steps, distributed over the main project phases, the exploration and development phases, are required to develop a geothermal energy project: CONNECTION OF THE PROJECT BY TERRESTRIAL AND UNDERWATER HIGH TENSION ELECTRIC CABLE TO THE NEIGHBOURING ISLANDS Exploration phase Project definition and recognition of the assessment, In-depth exploration, Pre-feasibility assessment, Exploratory drilling and delimitation of the perimeter of the project, Feasibility study (analysis of resources and estimation of potential development), Project financing (Public-Private partnership), PPA (Power Purchase Act), Project design documents, Environmental Impact Assessment. Development phase Production and reinjection of drilling in gradual phasing, Building of power stations (plants) and transmission lines by phasing or gradually,/ Commissioning of the project by phasing or gradually. The project schedule is presented below: 2009 2010 2011 2012 2013 2014 2015 2016 2017 Start of exploratory drilling Start of development drilling Start of building of 1st product unit 1st unit of 2x30 MW on line 2nd unit of 2x30 MW on line Estimated average power available for export 40 MW 40 MW 40 MW 100 MWPDF Image | Wotten Waven Geothermal Energy Project
PDF Search Title:
Wotten Waven Geothermal Energy ProjectOriginal File Name Searched:
Brochure_Caribbean_Geothermal_Energy_Phase_I_Summary.pdfDIY PDF Search: Google It | Yahoo | Bing
