Text from PDF Page: 002

LMTD logarithmic mean temperature difference m Q Greek symbols   Subscripts 0 ambient cond condenser crit critical CW cooling water el electric ex exergetic exp expander G generator glide temperature glide gross gross electricity heat heater HS heat source in inlet is isentropic lm logarithmic mean m mechanical M motor net net electricity ORC working fluid of ORC out outlet pump pump th thermal mass flow rate of the working fluid, kg/s n rotational speed (RPM) ODP ozone depletion potential (relative to R-11) p pressure, bar P power, kW heat flow, kWth s specific entropy, kJ/kgK SP size parameter of turbine, m T temperature, oC U overall heat transfer coefficient, kW/K V volume flow rate of the working fluid, m3/h VFR volume flow ratio of expander inlet and outlet streams difference efficiency 2

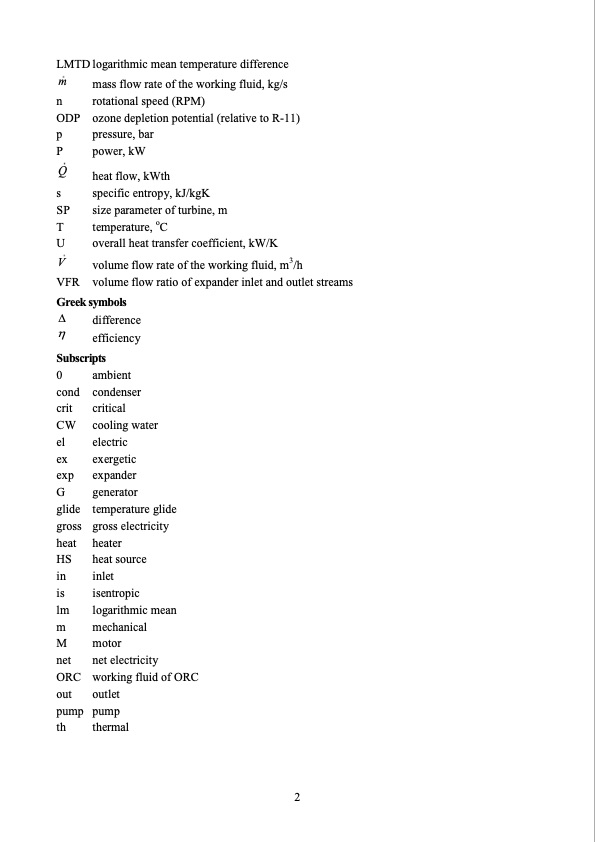

PDF Image | Thermodynamic investigation of waste heat recovery
