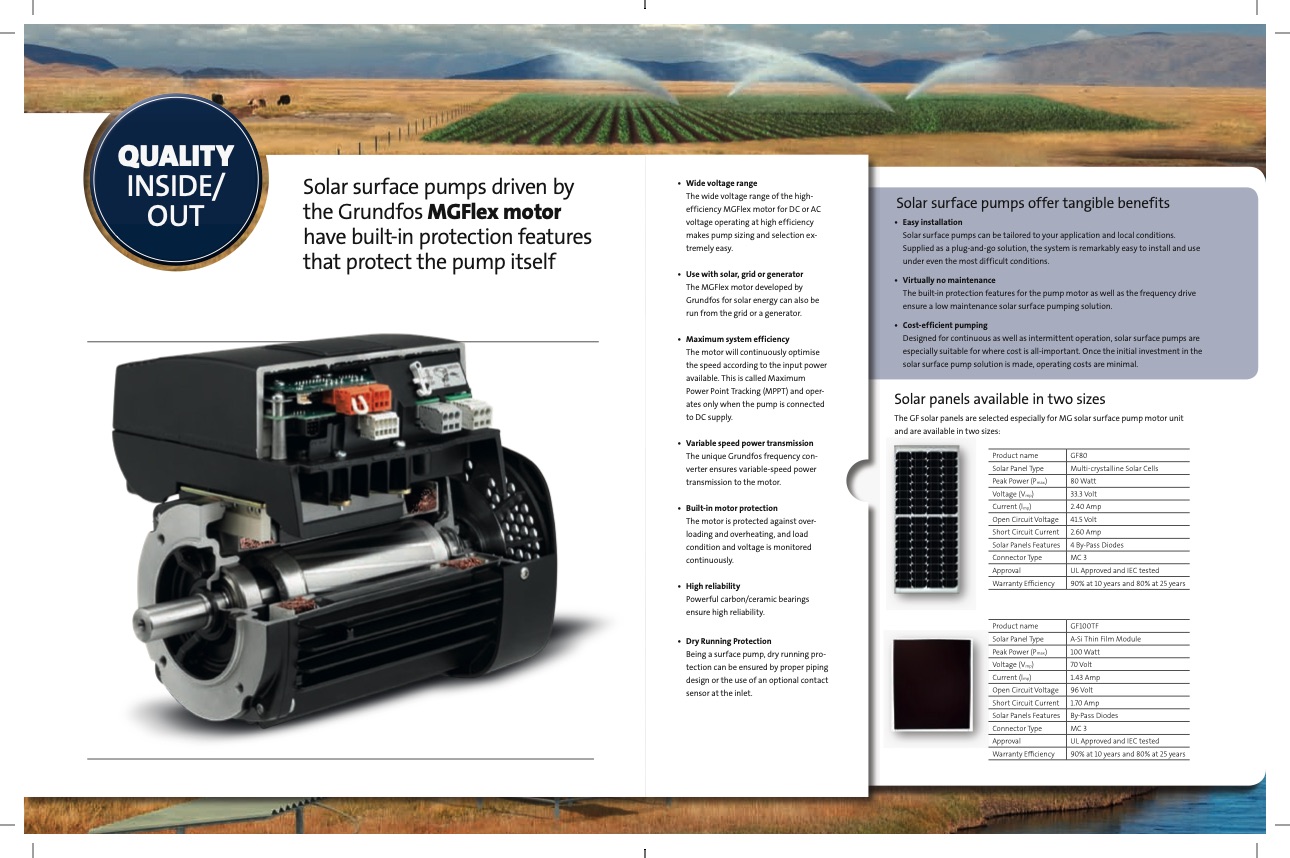

Solar surface pumps driven by MGFlex the Grundfos MGFlex motor – renewables dry motor have built-in protection features that protect the pump itself Quality insidE/ OuT • Widevoltagerange The wide voltage range of the high- efficiency MGFlex motor for DC or AC voltage operating at high efficiency makes pump sizing and selection ex- tremely easy. • Usewithsolar,gridorgenerator The MGFlex motor developed by Grundfos for solar energy can also be run from the grid or a generator. • Maximumsystemefficiency The motor will continuously optimise the speed according to the input power available. This is called Maximum Power Point Tracking (MPPT) and oper- ates only when the pump is connected to DC supply. • Variablespeedpowertransmission The unique Grundfos frequency con- verter ensures variable-speed power transmission to the motor. • Built-inmotorprotection The motor is protected against over- loading and overheating, and load condition and voltage is monitored continuously. • Highreliability Powerful carbon/ceramic bearings ensure high reliability. • DryRunningProtection Being a surface pump, dry running pro- tection can be ensured by proper piping design or the use of an optional contact sensor at the inlet. Solar surface pumps offer tangible benefits • Easyinstallation Solar surface pumps can be tailored to your application and local conditions. Supplied as a plug-and-go solution, the system is remarkably easy to install and use under even the most difficult conditions. • Virtuallynomaintenance The built-in protection features for the pump motor as well as the frequency drive ensure a low maintenance solar surface pumping solution. • Cost-efficientpumping Designed for continuous as well as intermittent operation, solar surface pumps are especially suitable for where cost is all-important. Once the initial investment in the solar surface pump solution is made, operating costs are minimal. Solar panels available in two sizes The GF solar panels are selected especially for MG solar surface pump motor unit and are available in two sizes: Product name Solar Panel Type Peak Power (Pmax) Voltage (Vmp) Current (lmp) Open Circuit Voltage Short Circuit Current Solar Panels Features Connector Type Approval Warranty Efficiency Product name Solar Panel Type Peak Power (Pmax) Voltage (Vmp) Current (lmp) Open Circuit Voltage Short Circuit Current Solar Panels Features Connector Type Approval Warranty Efficiency GF80 Multi-crystalline Solar Cells 80 Watt 33.3 Volt 2.40 Amp 41.5 Volt 2.60 Amp 4 By-Pass Diodes MC 3 UL Approved and IEC tested 90% at 10 years and 80% at 25 years GF100TF A-Si Thin Film Module 100 Watt 70 Volt 1.43 Amp 96 Volt 1.70 Amp By-Pass Diodes MC 3 UL Approved and IEC tested 90% at 10 years and 80% at 25 yearsPDF Image | Solar Surface Pumps by Grundfos
