Text from PDF Page: 004

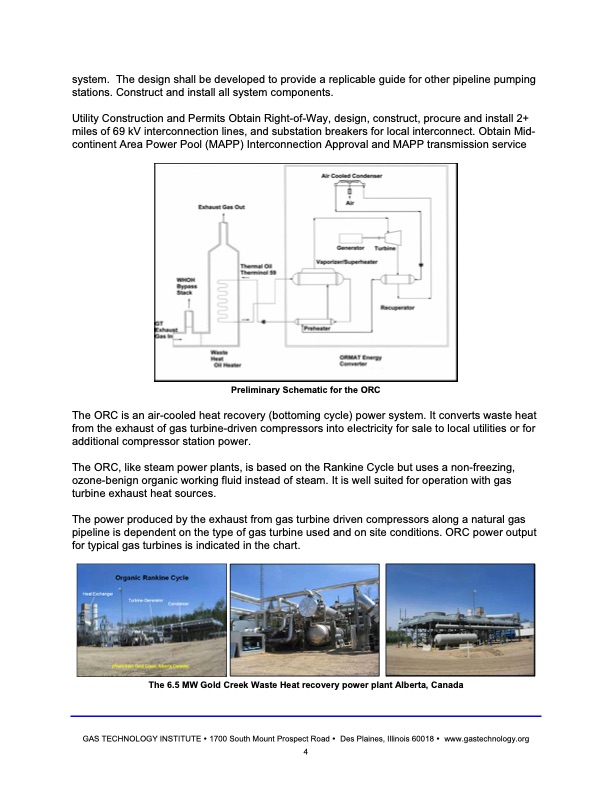

system. The design shall be developed to provide a replicable guide for other pipeline pumping stations. Construct and install all system components. Utility Construction and Permits Obtain Right-of-Way, design, construct, procure and install 2+ miles of 69 kV interconnection lines, and substation breakers for local interconnect. Obtain Mid- continent Area Power Pool (MAPP) Interconnection Approval and MAPP transmission service Preliminary Schematic for the ORC The ORC is an air-cooled heat recovery (bottoming cycle) power system. It converts waste heat from the exhaust of gas turbine-driven compressors into electricity for sale to local utilities or for additional compressor station power. The ORC, like steam power plants, is based on the Rankine Cycle but uses a non-freezing, ozone-benign organic working fluid instead of steam. It is well suited for operation with gas turbine exhaust heat sources. The power produced by the exhaust from gas turbine driven compressors along a natural gas pipeline is dependent on the type of gas turbine used and on site conditions. ORC power output for typical gas turbines is indicated in the chart. The 6.5 MW Gold Creek Waste Heat recovery power plant Alberta, Canada GAS TECHNOLOGY INSTITUTE 1700 South Mount Prospect Road Des Plaines, Illinois 60018 www.gastechnology.org 4PDF Image | RT and V Basic Electric Project
