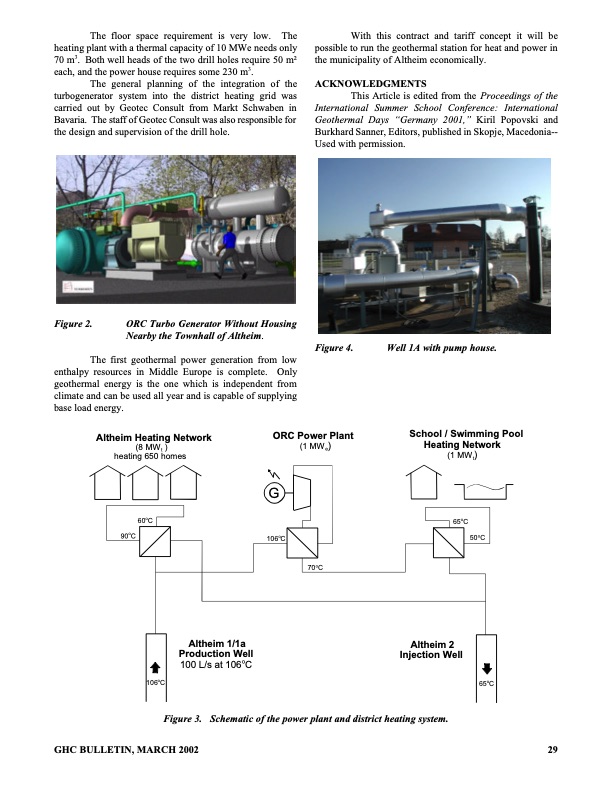

The floor space requirement is very low. The heating plant with a thermal capacity of 10 MWe needs only 70 m3. Both well heads of the two drill holes require 50 m2 each, and the power house requires some 230 m3. The general planning of the integration of the turbogenerator system into the district heating grid was carried out by Geotec Consult from Markt Schwaben in Bavaria. The staff of Geotec Consult was also responsible for the design and supervision of the drill hole. Figure 2. ORC Turbo Generator Without Housing Nearby the Townhall of Altheim. The first geothermal power generation from low enthalpy resources in Middle Europe is complete. Only geothermal energy is the one which is independent from climate and can be used all year and is capable of supplying base load energy. With this contract and tariff concept it will be possible to run the geothermal station for heat and power in the municipality of Altheim economically. ACKNOWLEDGMENTS This Article is edited from the Proceedings of the International Summer School Conference: International Geothermal Days “Germany 2001,” Kiril Popovski and Burkhard Sanner, Editors, published in Skopje, Macedonia-- Used with permission. Altheim Heating Network (8 MWt ) heating 650 homes ORC Power Plant (1 MWe) 70oC (1 MWt) Figure 4. Well 1A with pump house. School / Swimming Pool Heating Network 60oC G 106oC 90oC GHC BULLETIN, MARCH 2002 29 106oC Figure 3. 65oC Altheim 1/1a Production Well 100 L/s at 106oC Altheim 2 Injection Well Schematic of the power plant and district heating system. 65oC 50oCPDF Image | LOW-ENTHALPY POWER GENERATION WITH ORC-TURBOGENERATOR
